240L Electric Drum Concrete Mixer

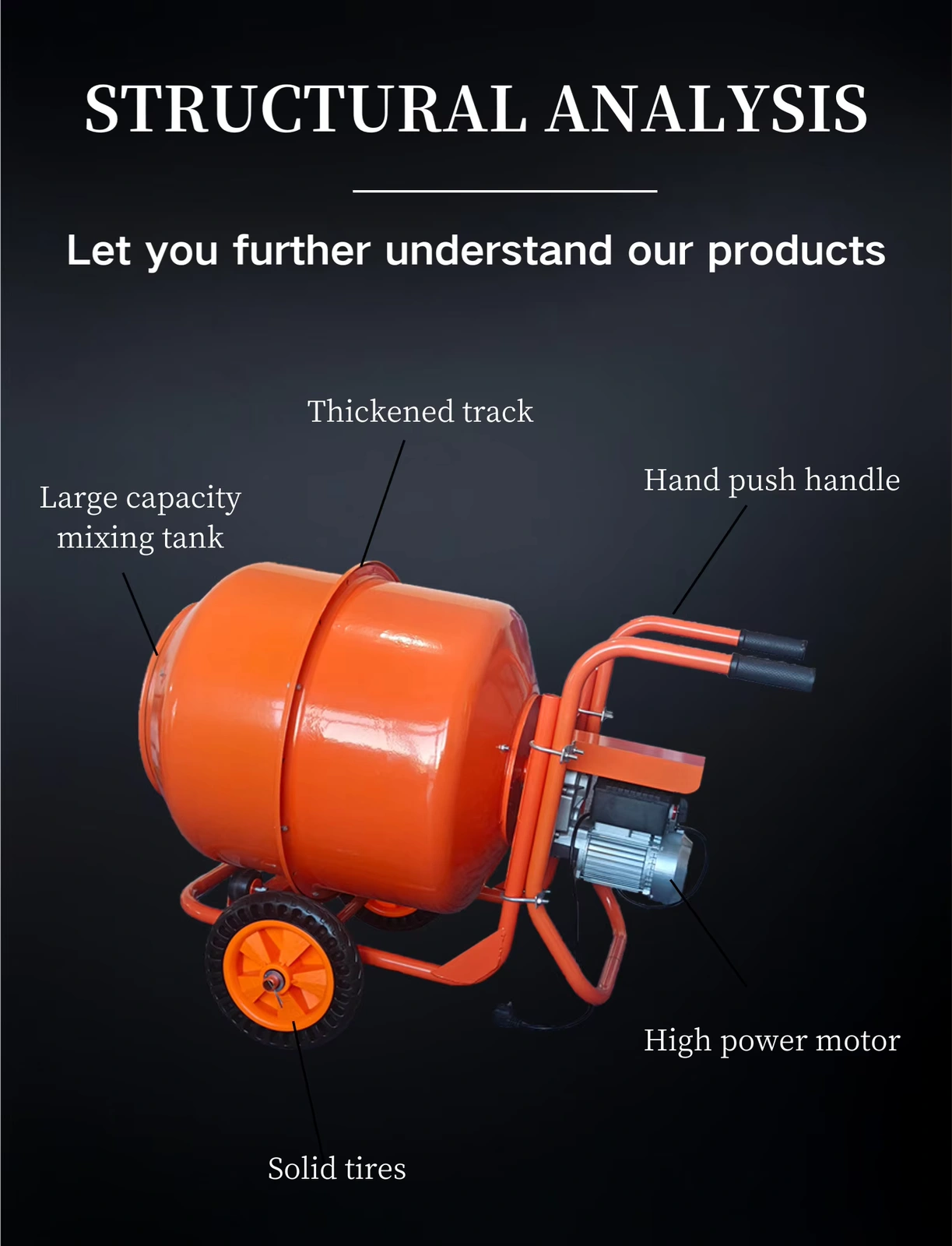

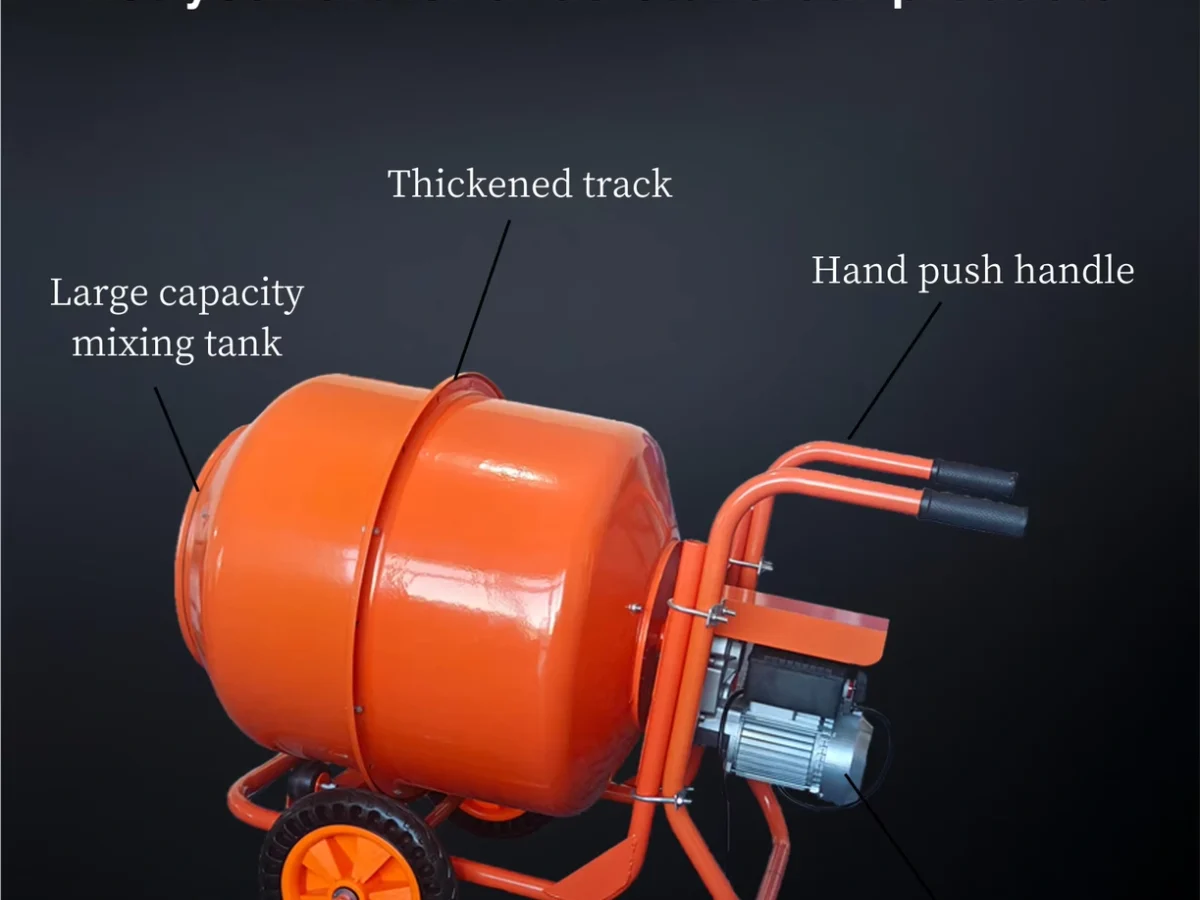

This compact mixer has a drum, electric motor, hand-push frame and tipping handles. It is suited to a small batch workflow where ingredients are loaded at the mixer and the mix is discharged into a nearby container.
- What this product is for
- Configuration and specification checks
- Size the mixer around the batch
- Delivery parts and upkeep
Technical Specifications
| Source-listed mixing power | 2.5KW |
|---|---|
| Source-listed charging capacity | 240L |
| Source-listed discharge capacity | 240L |
| Source-listed rotation speed | 29r/min |
| Listed overall dimensions | 865*690*500mm |
| Listed machine weight | 58 kg |
| Electrical options; selected version to confirm | 110 /220 V / Customizable |
| Parameters to confirm | Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly. |
Product Description
What this product is for

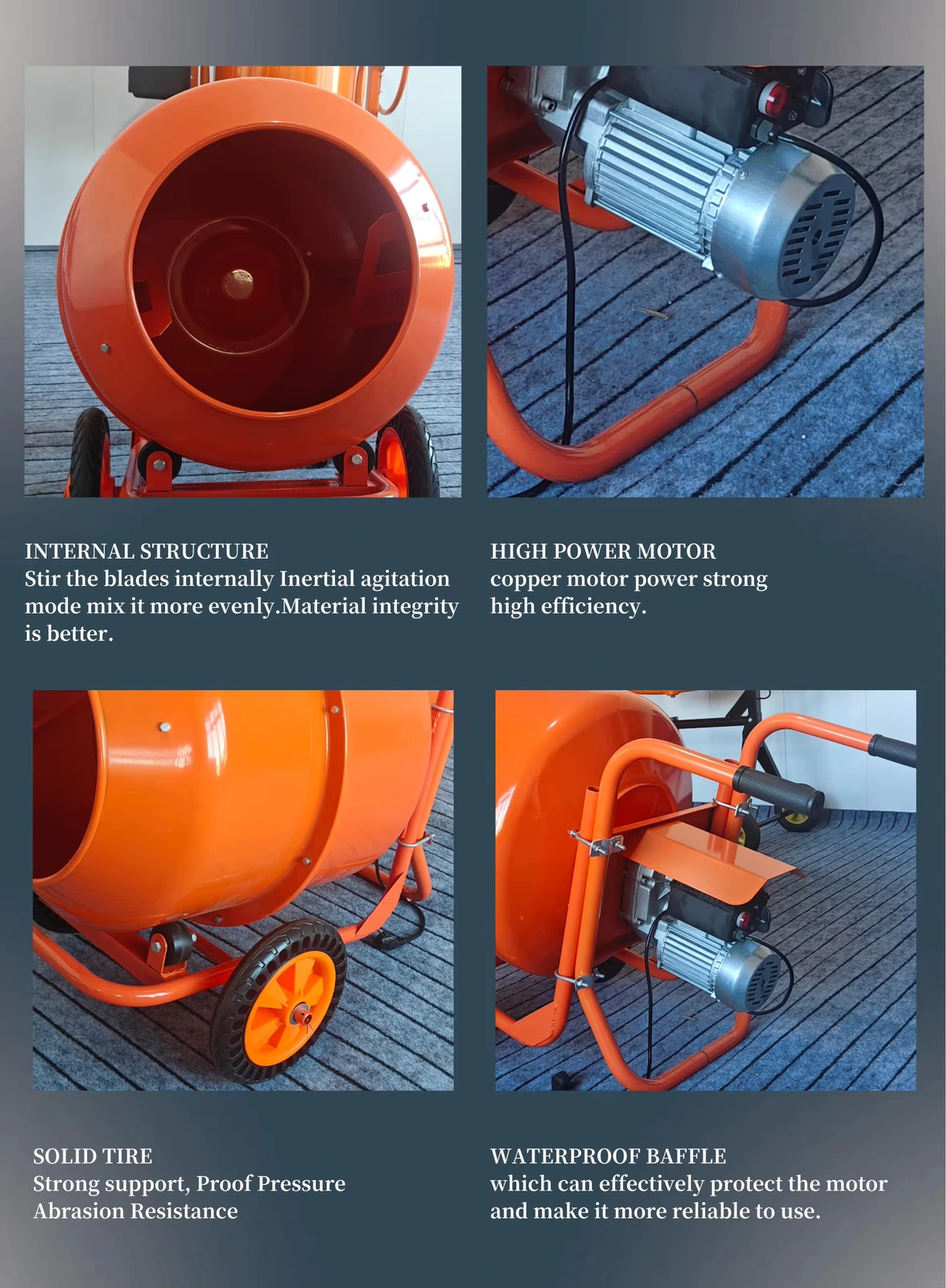

This compact mixer has a drum, electric motor, hand-push frame and tipping handles. It is suited to a small batch workflow where ingredients are loaded at the mixer and the mix is discharged into a nearby container. Original supplier panels show the drum interior, motor and packing; the separate multi-model panel is not treated as this machine’s gallery.
Configuration and specification checks
The source lists 240L, 2.5KW, 29r/min and 58 kg, with 110 /220 V / Customizable electrical choices. It repeats 240L as both charging and reclaiming capacity. Confirm actual usable batch output instead of assuming a full drum produces that amount of mixed concrete. Ask whether the dimensions describe a complete assembled mixer or packed components.
Size the mixer around the batch
State the material recipe, aggregate size, quantity per batch and intended receiving container. A nominal drum size is not the same as practical mixed output. Check the loading height, tipping clearance, access route and electrical supply; a hand-push frame is for local positioning, not proof of road-towing capability.
Delivery parts and upkeep
Ask whether the drum, frame, wheels, motor and tipping controls arrive assembled or packed separately. Request the correct operating manual and availability of the belt, gears, bearings and other wear parts for this actual version. Confirm the cleaning and inspection schedule with the supplier rather than borrowing a procedure from a visually similar mixer.
Before ordering
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Applications
This compact mixer has a drum, electric motor, hand-push frame and tipping handles. It is suited to a small batch workflow where ingredients are loaded at the mixer and the mix is discharged into a nearby container. Original supplier panels show the drum interior, motor and packing; the separate multi-model panel is not treated as this machine’s gallery.

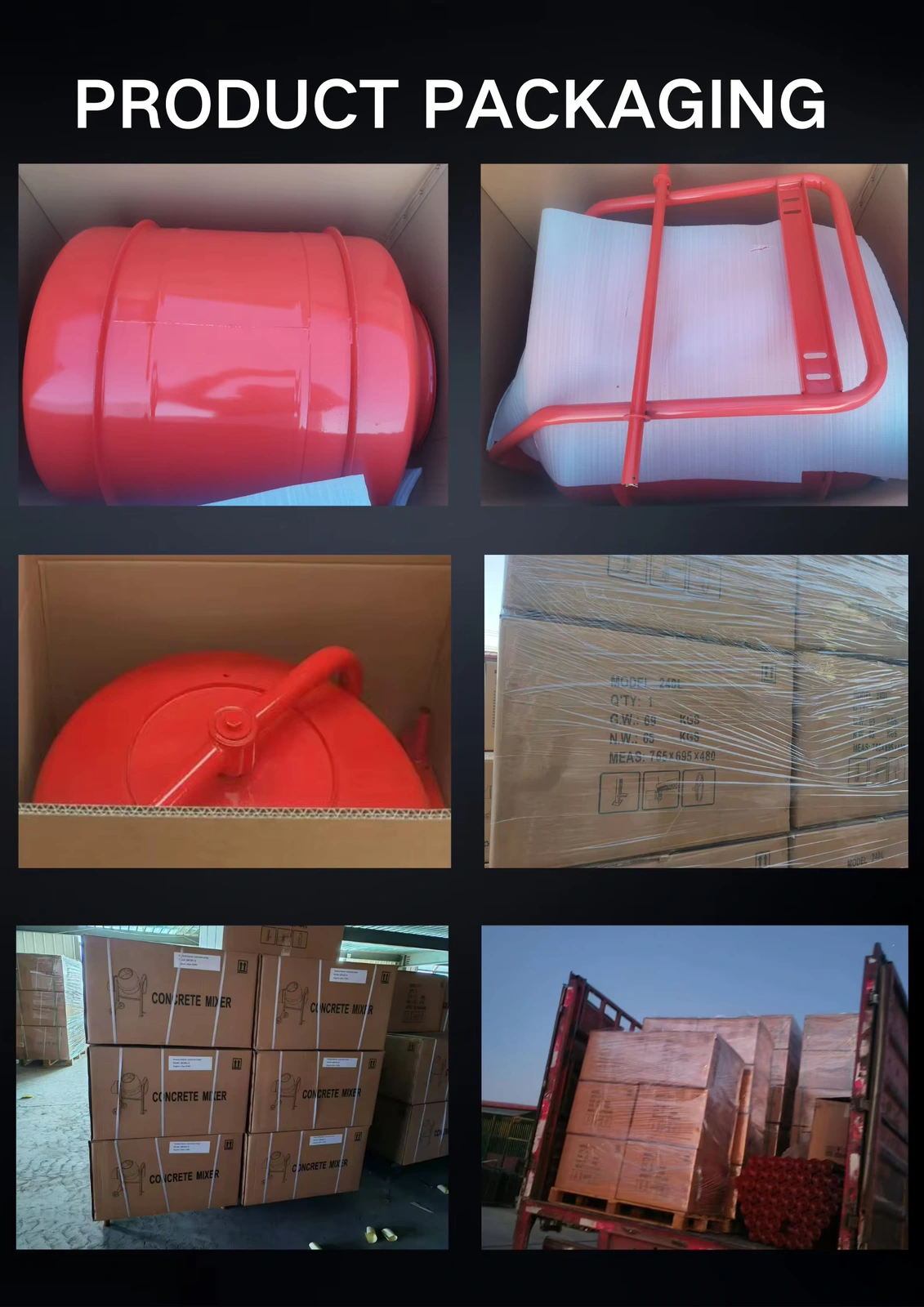

Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Product FAQ
Is nominal drum capacity the usable batch?
Do not assume so. Confirm useful charging and mixed output for the intended recipe.
Can one motor use every listed voltage?
The source lists options, not a confirmed multi-voltage motor. Specify the site supply and request the supplied motor plate.
Is water supply automatic?
Do not infer that from a general attribute or a photo. Agree the included water equipment and dosing arrangement separately.
What is required for delivery and maintenance?
Confirm assembly state, package dimensions, motor version, tipping mechanism and the matching wear-parts list and manual.
What needs confirmation in this particular listing?
The source lists 240L, 2.5KW, 29r/min and 58 kg, with 110 /220 V / Customizable electrical choices. It repeats 240L as both charging and reclaiming capacity. Confirm actual usable batch output instead of assuming a full drum produces that amount of mixed concrete. Ask whether the dimensions describe a complete assembled mixer or packed components.
What should I send to select this product?
State the material recipe, aggregate size, quantity per batch and intended receiving container. A nominal drum size is not the same as practical mixed output. Check the loading height, tipping clearance, access route and electrical supply; a hand-push frame is for local positioning, not proof of road-towing capability.
