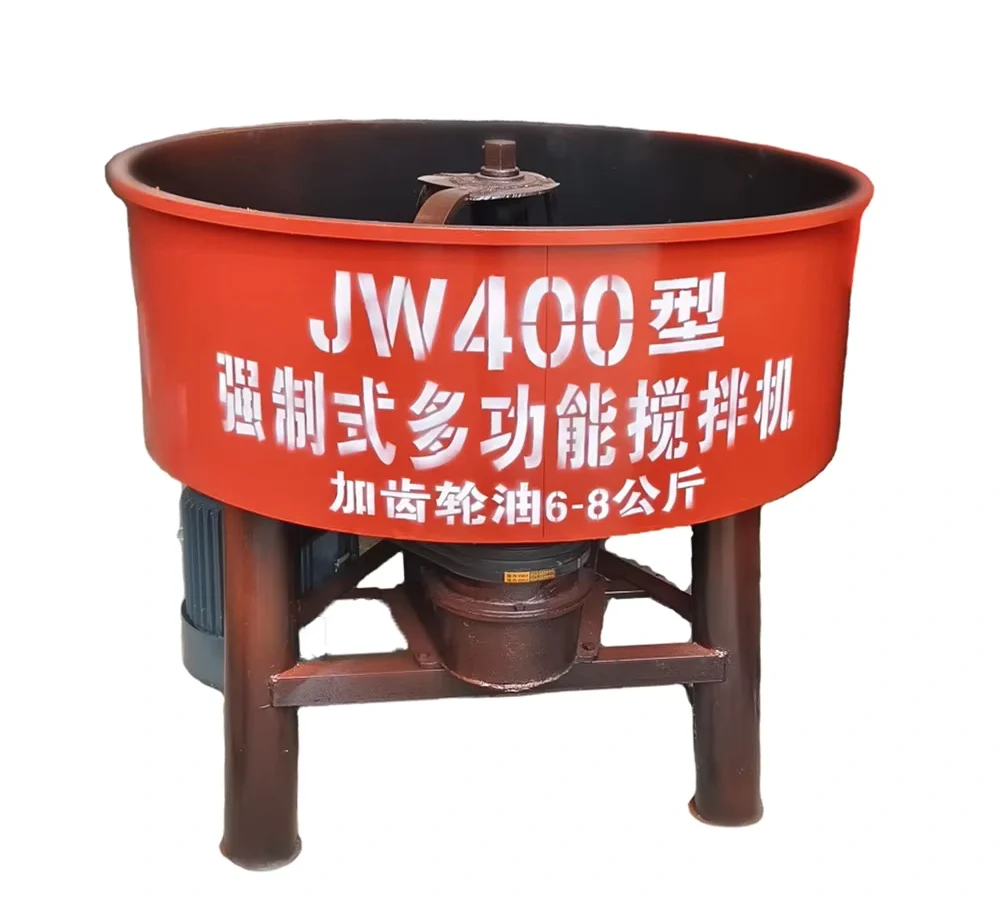

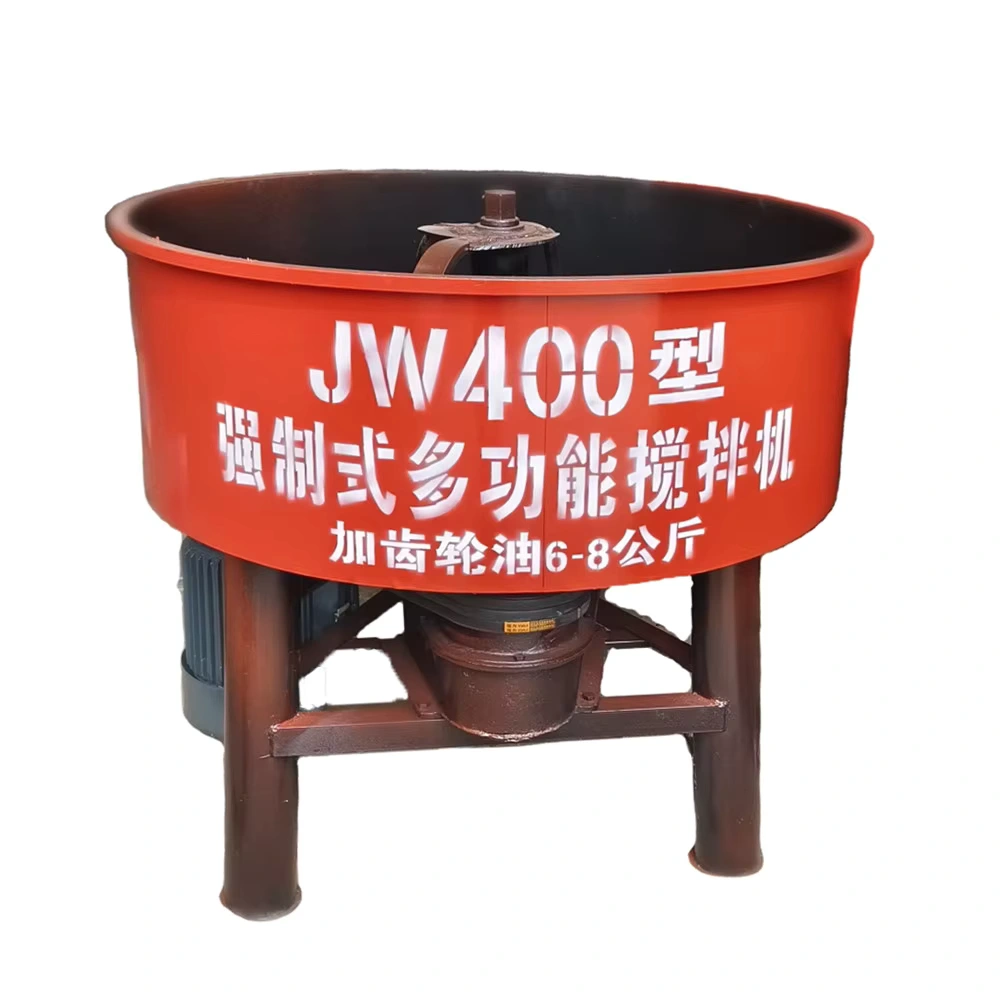

JW400 pan mixer: original whole assembly

Original supplier photographs and component panels. Engine, colour, fitted equipment and packing examples may differ from the quoted delivery.

JW400

JW400 Pan Concrete Mixer

JW400 is a stationary pan mixer: the vessel stays upright while the mixing assembly works through the batch. Original photographs show the pan, drive, lower outlet area and workshop units.

What this product is for
Configuration and specification checks
Match the batch to the process
Installation and routine service

Get a Quote WhatsApp

Technical Specifications

Source-listed drive power	5.5kw
Source-listed mixing power	5.5kW
Source-listed charging capacity	400L
Source-listed discharge capacity	300L
Listed overall dimensions	115011501100mm
Supplier output claim; site conditions to confirm	10-14M³/H
Listed machine weight	320 kg
Parameters to confirm	Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.

Product Description

What this product is for

JW400 is a stationary pan mixer: the vessel stays upright while the mixing assembly works through the batch. Original photographs show the pan, drive, lower outlet area and workshop units. It is different from a tilting drum mixer; access to the discharge point and a receiving container should be planned with the installation.

Configuration and specification checks

The source separates a 400L charging capacity from 300L reclaiming capacity and lists 5.5kW with 320 kg. Those two capacities are not interchangeable. The speed field 21/35min is ambiguous and is not presented as confirmed rpm. The automatic-discharge and water-pump fields should be checked against the exact quote and photographs of the controls.

Match the batch to the process

Specify the material recipe, aggregate grading, required batch quantity and where the mix will be discharged. Charging volume, discharge volume and hourly output describe different things. For a pan mixer, also agree the paddle arrangement, wear parts and clearance below the outlet before deciding how to feed the next stage.

Installation and routine service

Request the electrical plate, mounting or support drawing, guarding arrangement and operating manual. Ask which paddles, liners, bearings and drive parts are available and how the discharge arrangement is supplied. Mixing and maintenance procedures should be those for the delivered assembly, not copied from a drum mixer.

Before ordering

Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.

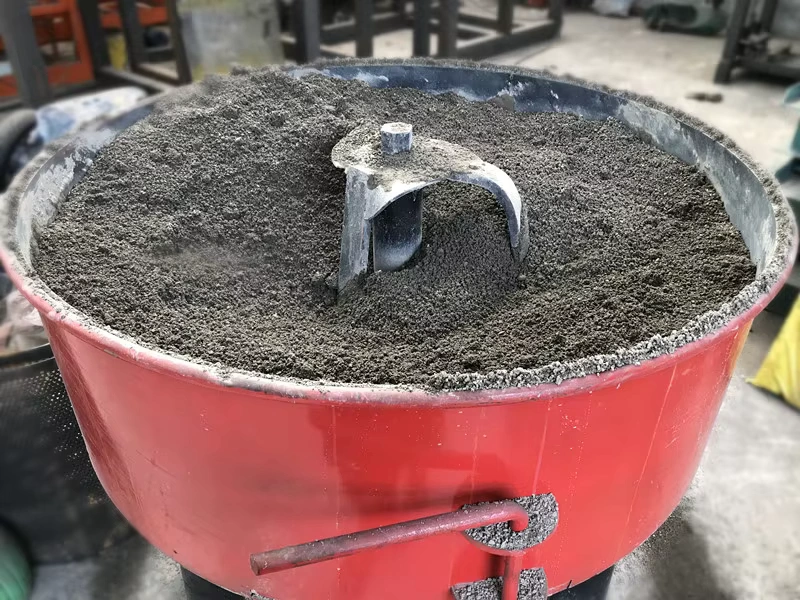

Original pan interior and mixing assembly

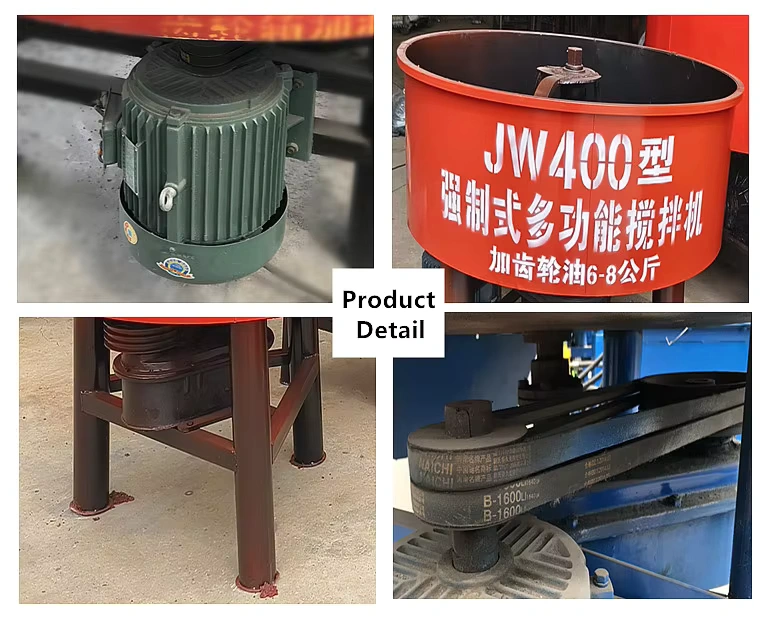

Original drive and discharge-area detail panel

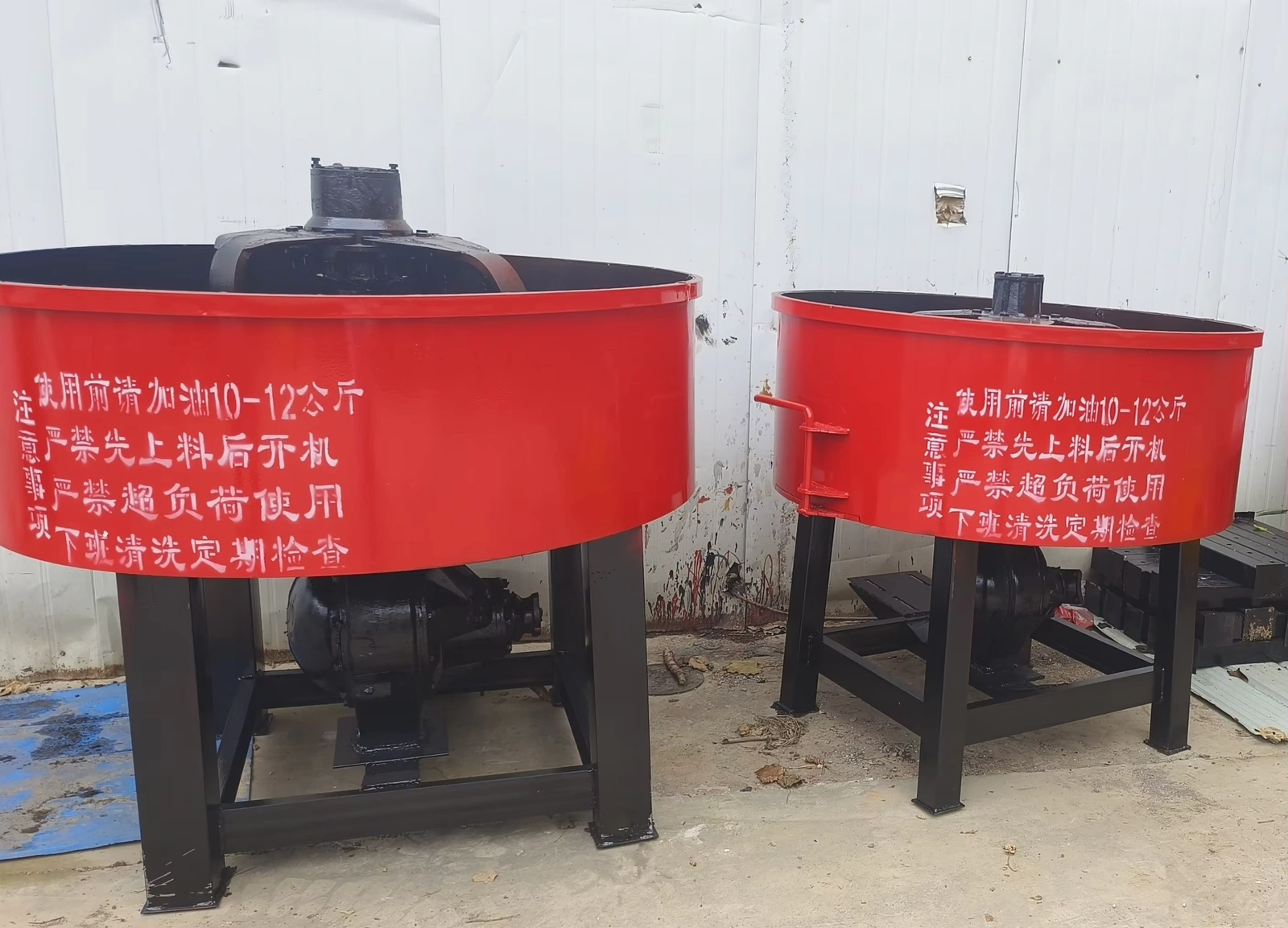

Workshop mixer configuration examples

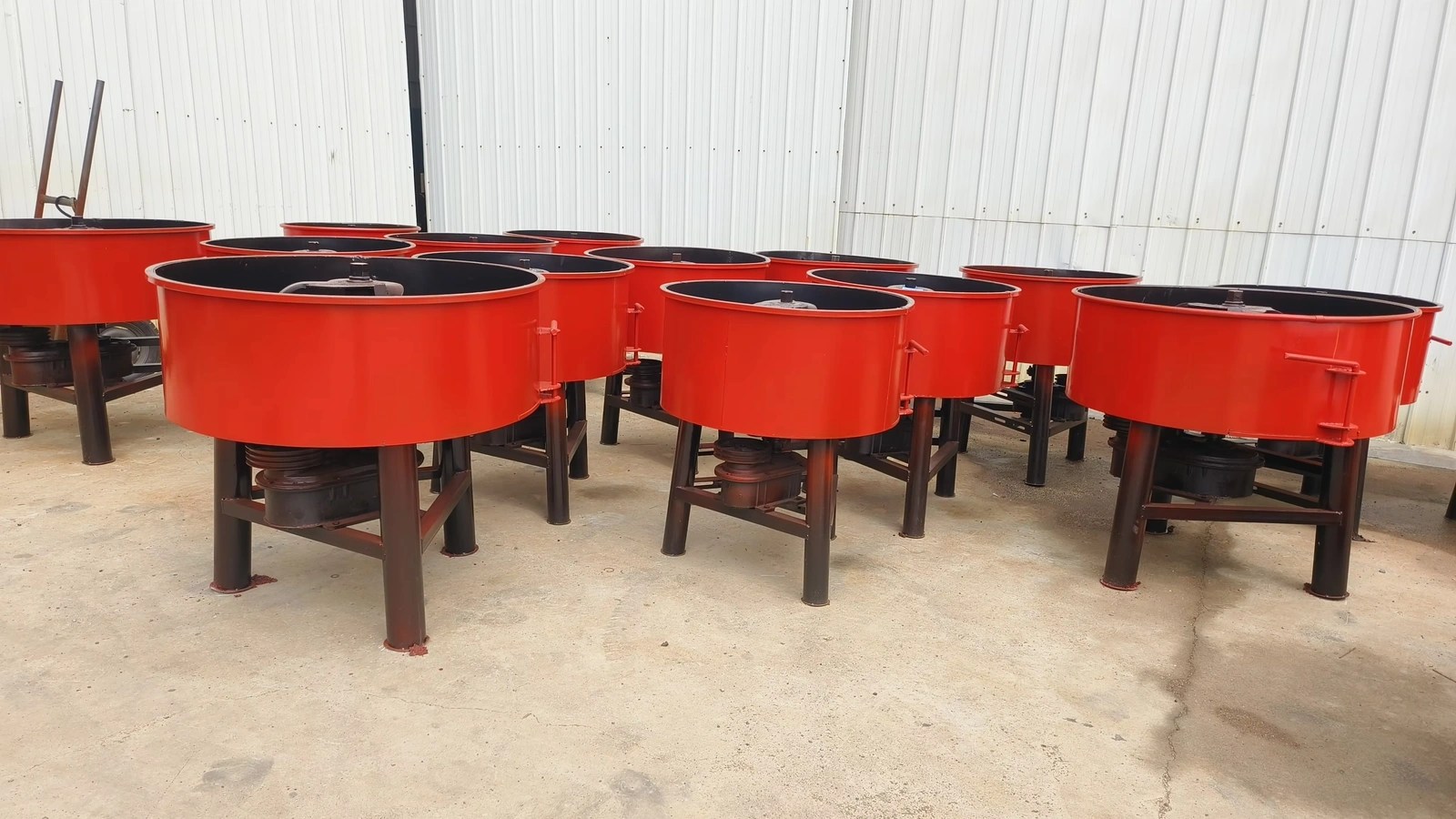

Original workshop lineup; delivery contents quoted separately

Applications

JW400 is a stationary pan mixer: the vessel stays upright while the mixing assembly works through the batch. Original photographs show the pan, drive, lower outlet area and workshop units. It is different from a tilting drum mixer; access to the discharge point and a receiving container should be planned with the installation.

Packaging & Shipping

Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.

Configuration Options

Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.

Product FAQ

Is charging capacity the finished batch volume?

No. Use the separately quoted useful discharge capacity for the actual recipe.

Is automatic discharge included?

The attribute uses that term, but the actuation, controls and included parts require confirmation for the delivered assembly.

What materials can it mix?

Submit the recipe and aggregate grading for supplier assessment; the broad concrete/sand description does not certify every mix.

What parts should be planned for service?

Ask for the paddle, liner, bearing and drive-parts list for the actual assembly and its maintenance instructions.

What needs confirmation in this particular listing?
