Source photographs and explicitly labelled close-up crops are shown. Five gallery materials do not imply five camera angles. Accessories, model variations and the delivered configuration require confirmation.
Model to be confirmed

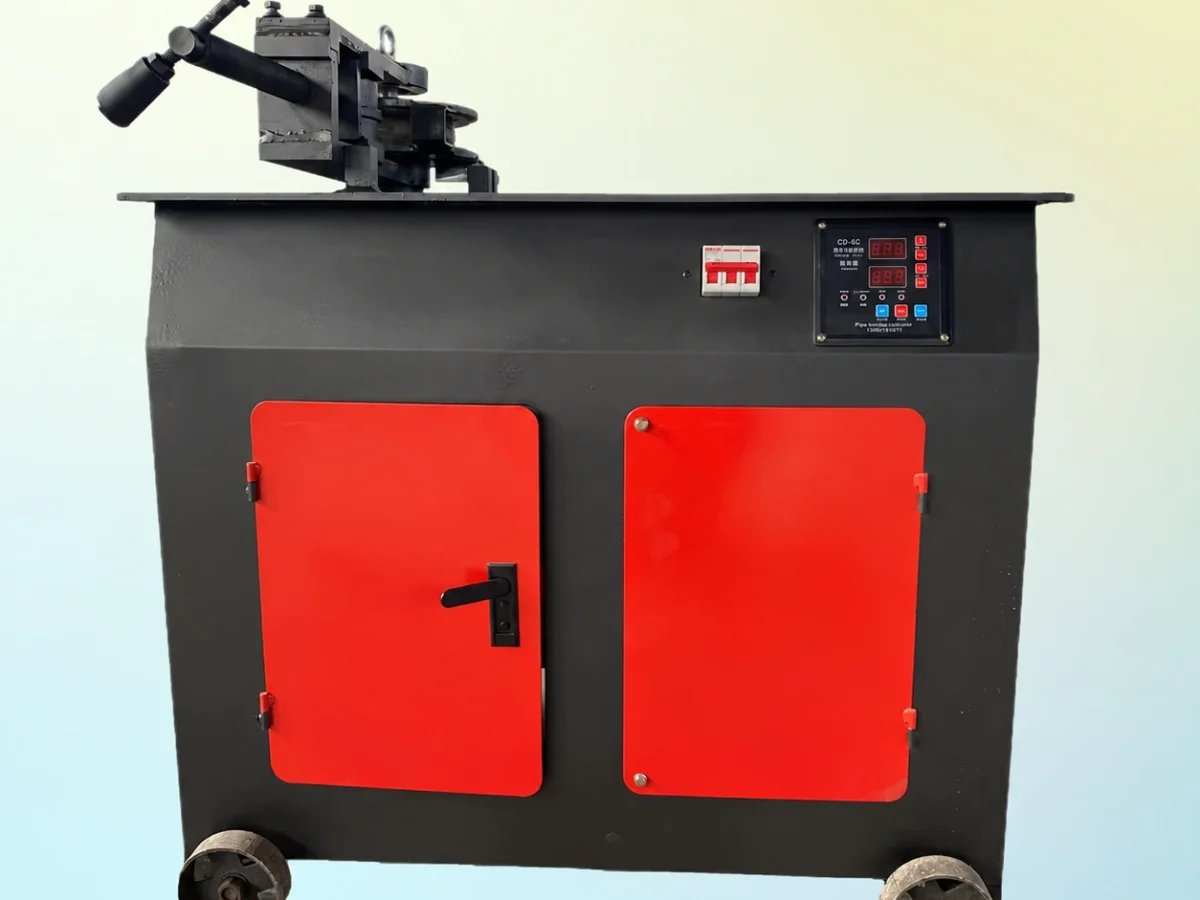

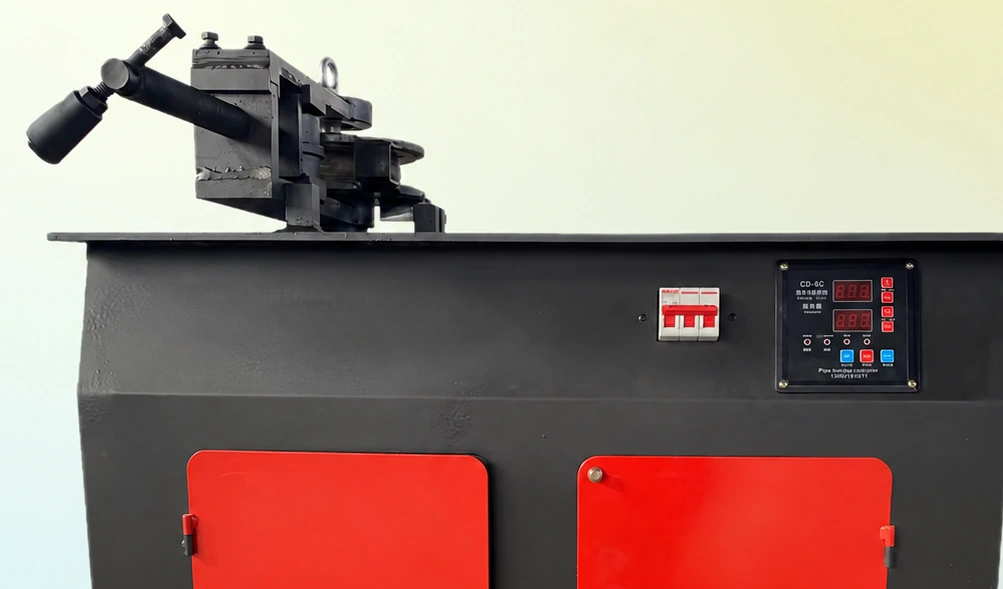

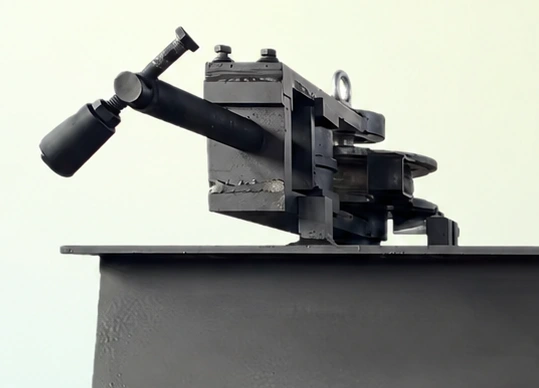

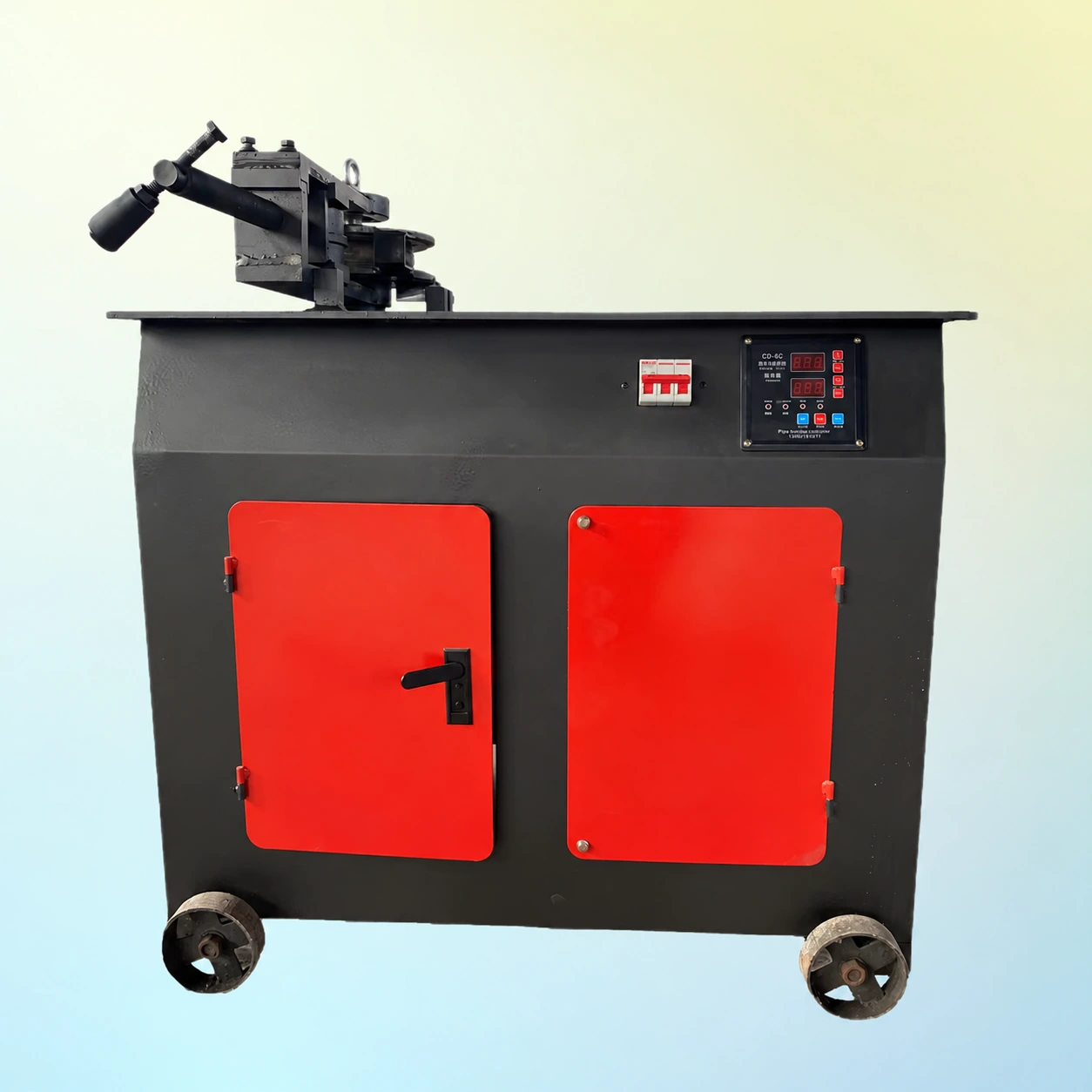

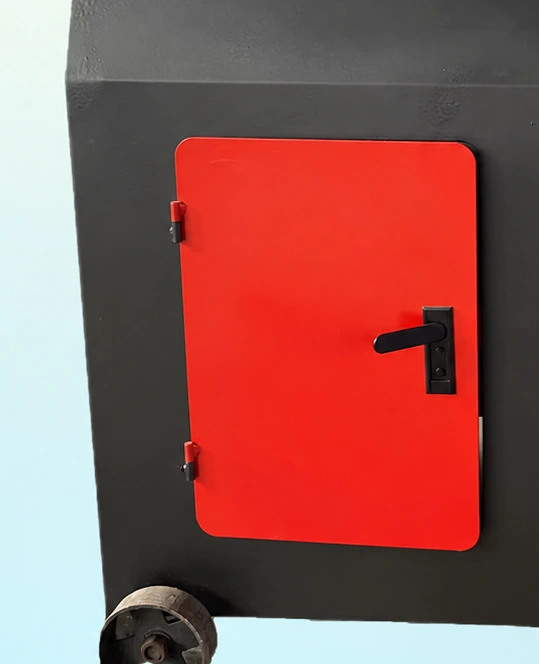

The pictured machine has a cabinet base and a rotary forming head for pipe work. The source’s 38mm size is a diameter listing, not a verified model code. Choose the former and supports for the actual tube and bend.
| Source-listed maximum angle (deg) | 180 |
|---|---|
| Listed angle tolerance (deg) | 1 |
| Listed motor power (kW) | 3 |
| Source-listed weight (kg) | 260 |
| Source-listed tube diameter; material/wall limits to confirm | 38mm |
| Listed bending speed | 10-20r/min |
| Listed overall dimensions | 900*800*1000mm |
| Source-listed supply | 380V50HZ |
| Parameters to confirm | Send an enquiry for missing or conflicting specifications and the exact supplied configuration. |
The pictured machine has a cabinet base and a rotary forming head for pipe work. The source’s 38mm size is a diameter listing, not a verified model code. Choose the former and supports for the actual tube and bend.
The listing gives 3 kW and 380V50HZ. Wall thickness, material limits and die inclusion require confirmation. WG-76 panels elsewhere in the source are not proof that its head or capacity belongs to this machine.
Send an enquiry for missing or conflicting specifications and the exact supplied configuration.
The pictured machine has a cabinet base and a rotary forming head for pipe work. The source’s 38mm size is a diameter listing, not a verified model code. Choose the former and supports for the actual tube and bend.
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Send an enquiry for missing or conflicting specifications and the exact supplied configuration.
No. Material, wall thickness, bend radius and tooling must match the quoted machine.
Source photographs do not establish inclusion. Request a die list with the quotation.
Send tube outside diameter, wall thickness, material, bend radius and a drawing of the bend sequence. Request the exact model, die set, control system and electrical configuration in the quotation.
