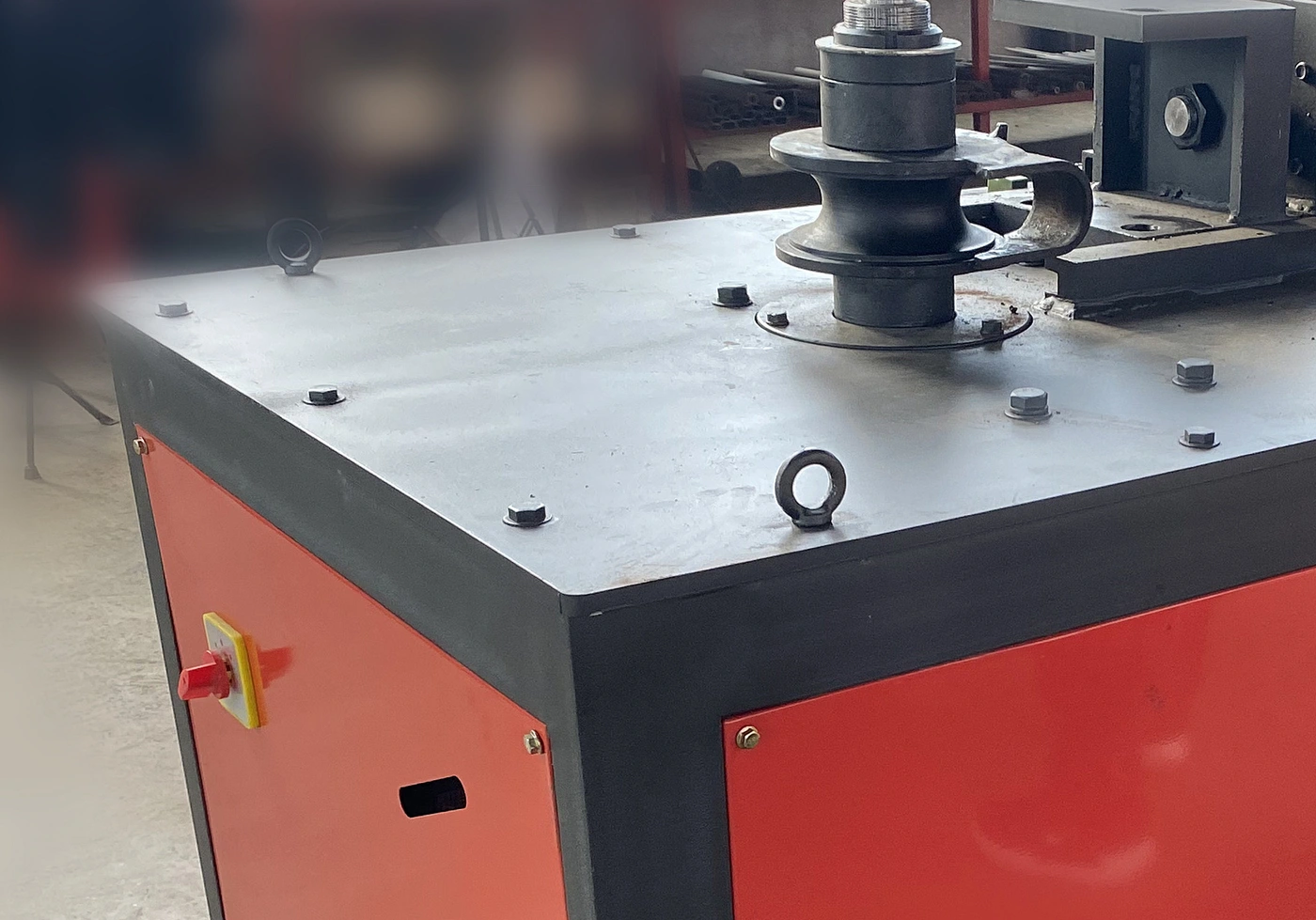

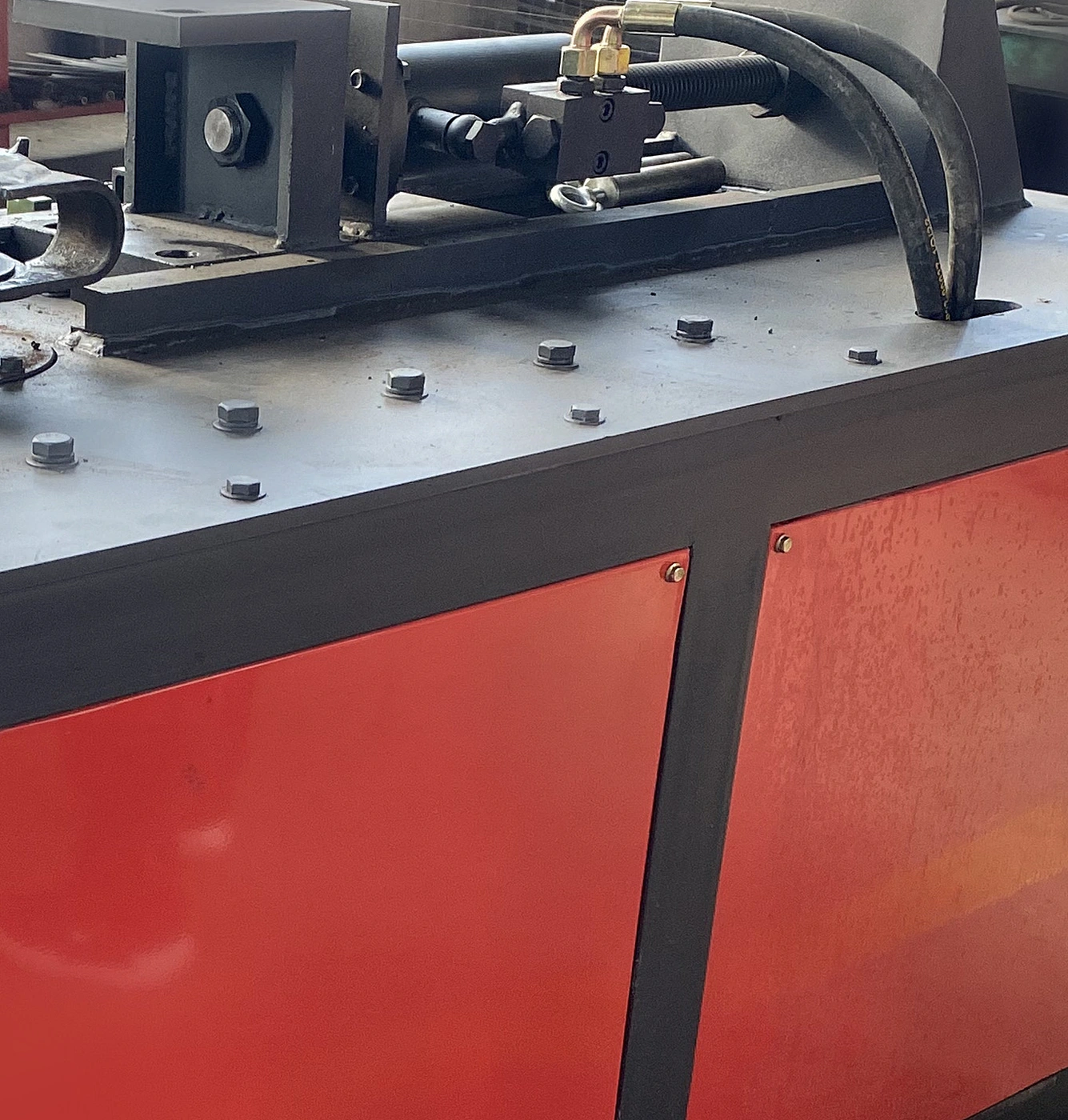

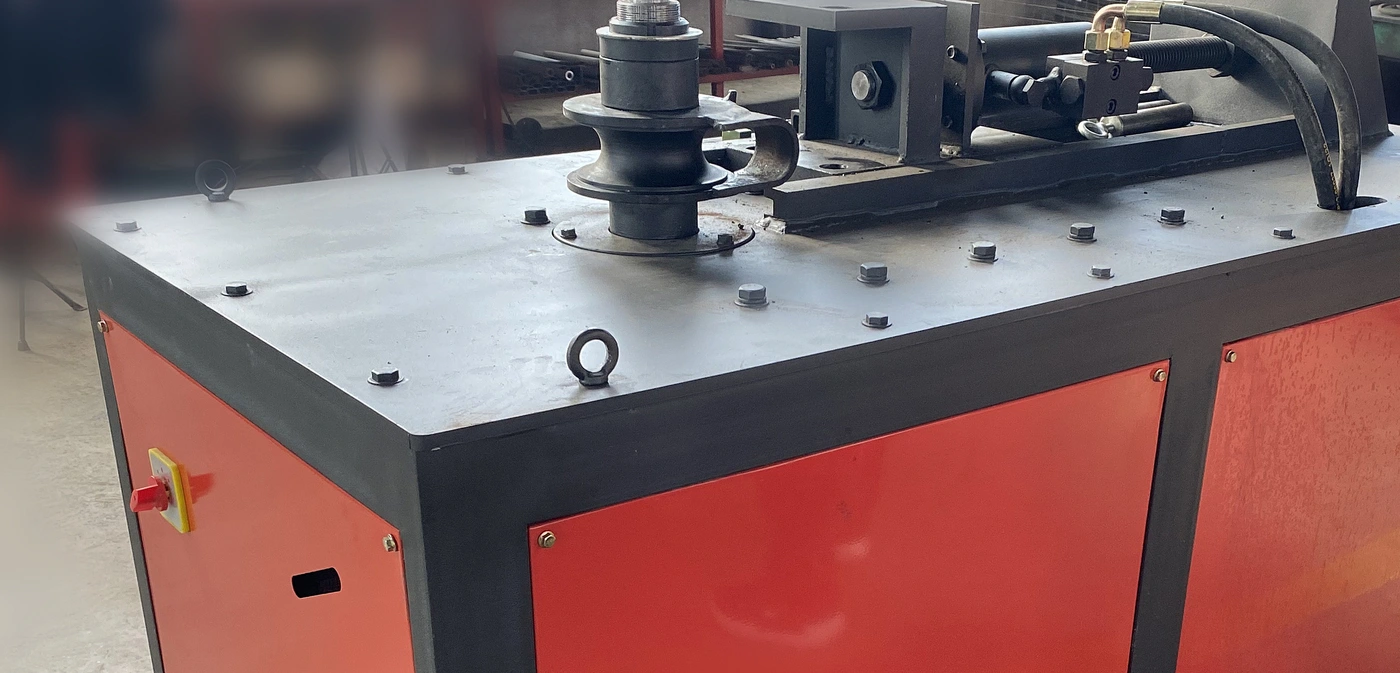

Source photographs and explicitly labelled close-up crops are shown. Five gallery materials do not imply five camera angles. Accessories, model variations and the delivered configuration require confirmation.
Model to be confirmed

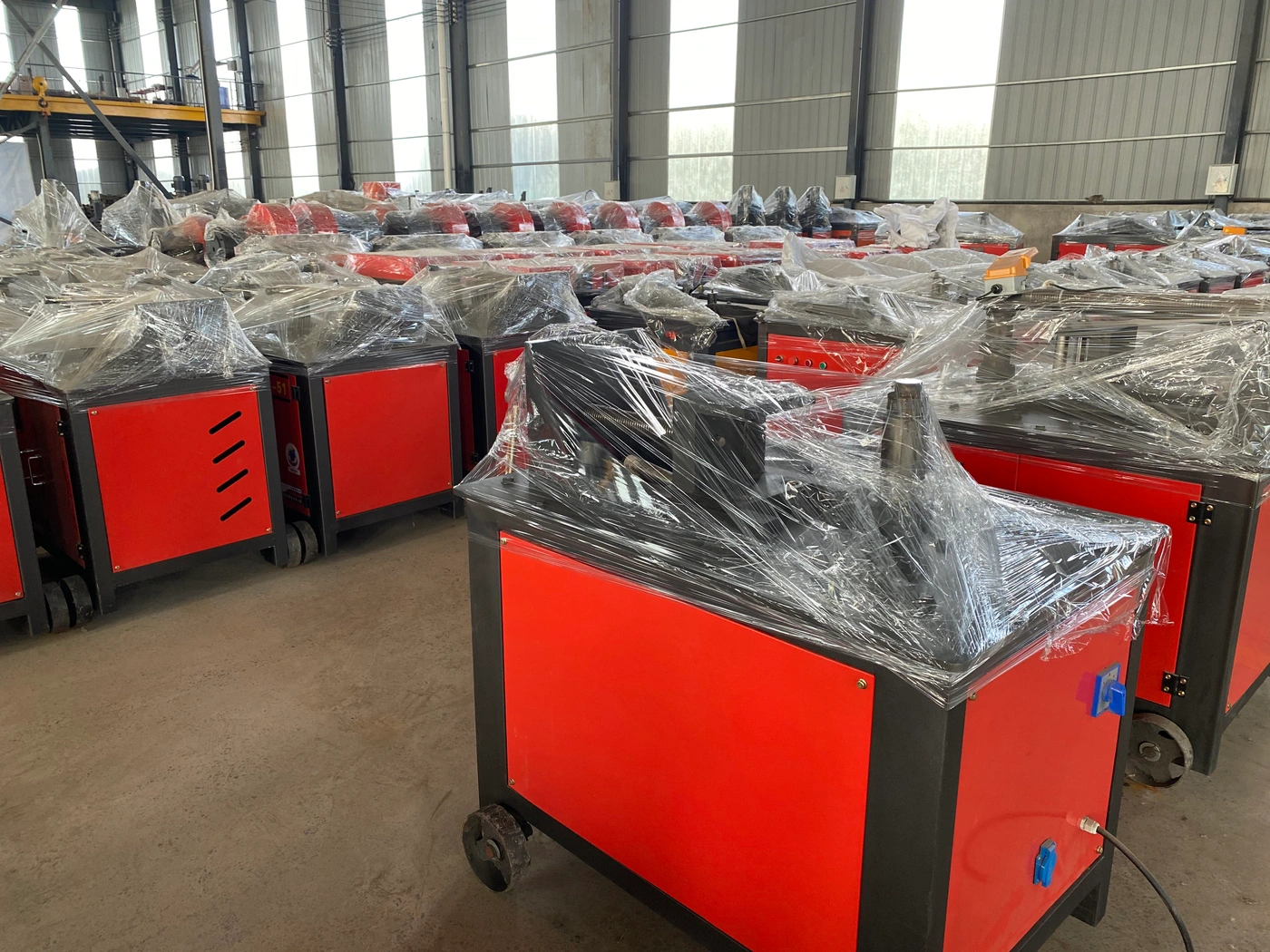

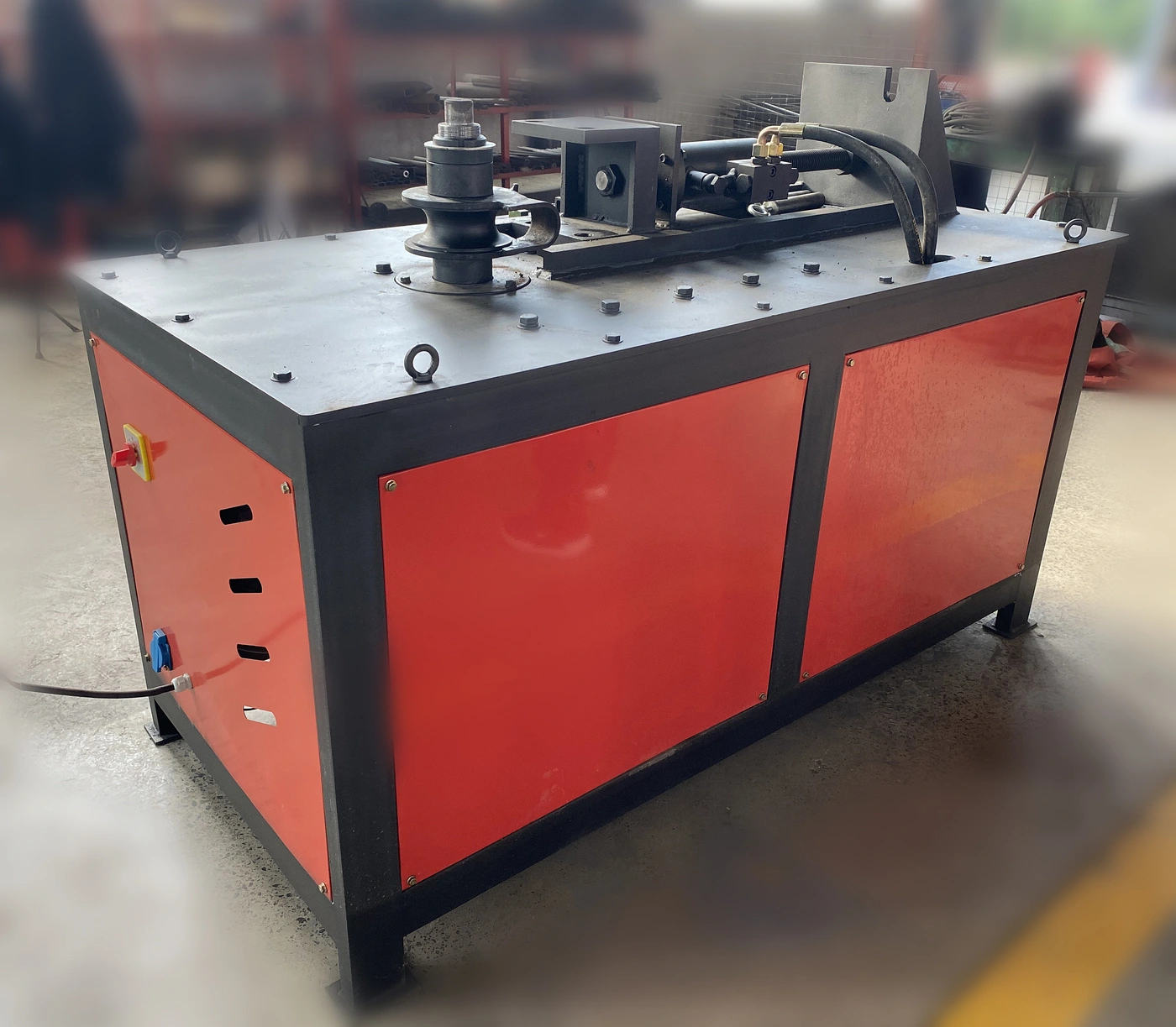

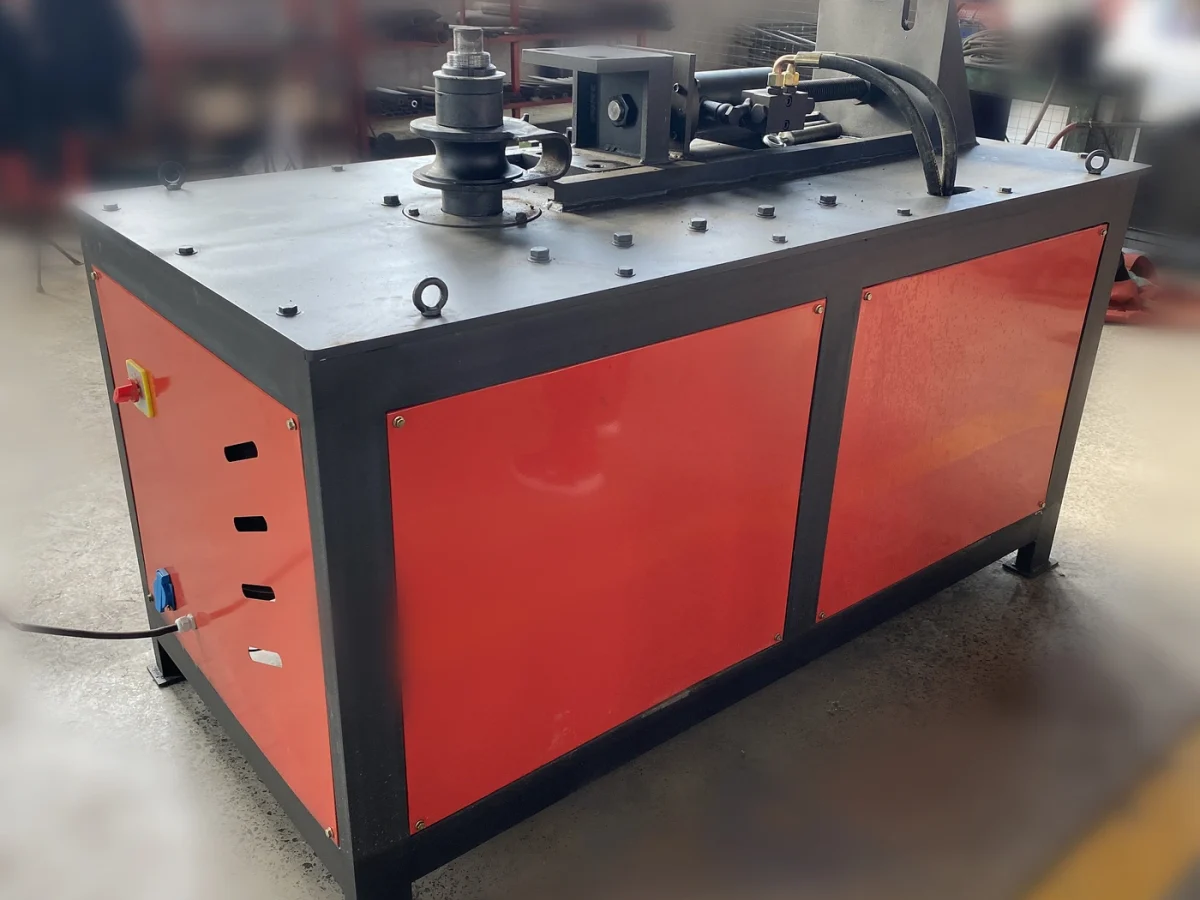

This cabinet-style pipe bender is shown in individual and workshop photographs. It is offered for making curved tube parts. Supply the material, outside diameter, wall thickness and bend drawing so the tooling and control arrangement can be checked.
| Source-listed maximum angle (deg) | 180 |
|---|---|
| Listed angle tolerance (deg) | 1 |
| Listed motor power (kW) | 5.5 |
| Source-listed weight (kg) | 700 |
| Source-listed diameter range and restrictions | 25-76mm steel pipe |
| Listed spindle speed | 25 rpm |
| Listed overall dimensions | 1750*850*1150mm |
| Parameters to confirm | Send an enquiry for missing or conflicting specifications and the exact supplied configuration. |
This cabinet-style pipe bender is shown in individual and workshop photographs. It is offered for making curved tube parts. Supply the material, outside diameter, wall thickness and bend drawing so the tooling and control arrangement can be checked.
The source lists 25-76mm, 5.5 kW and a semi-automatic configuration. A title mentioning CNC does not confirm a programmable control system. The value 380V50Hz is supply information, despite appearing under a motor-power label.
Send an enquiry for missing or conflicting specifications and the exact supplied configuration.
This cabinet-style pipe bender is shown in individual and workshop photographs. It is offered for making curved tube parts. Supply the material, outside diameter, wall thickness and bend drawing so the tooling and control arrangement can be checked.
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Send an enquiry for missing or conflicting specifications and the exact supplied configuration.
No. Material, wall thickness, bend radius and tooling must match the quoted machine.
Source photographs do not establish inclusion. Request a die list with the quotation.
Send tube outside diameter, wall thickness, material, bend radius and a drawing of the bend sequence. Request the exact model, die set, control system and electrical configuration in the quotation.
The WG-76 source photograph and its cabinet marking identify the same model. Its rotary tooling bends a tube around a selected former. The material, wall thickness and required radius should be specified together before a die set is selected.
