Automatic Wall Saw Track — Length to Confirm

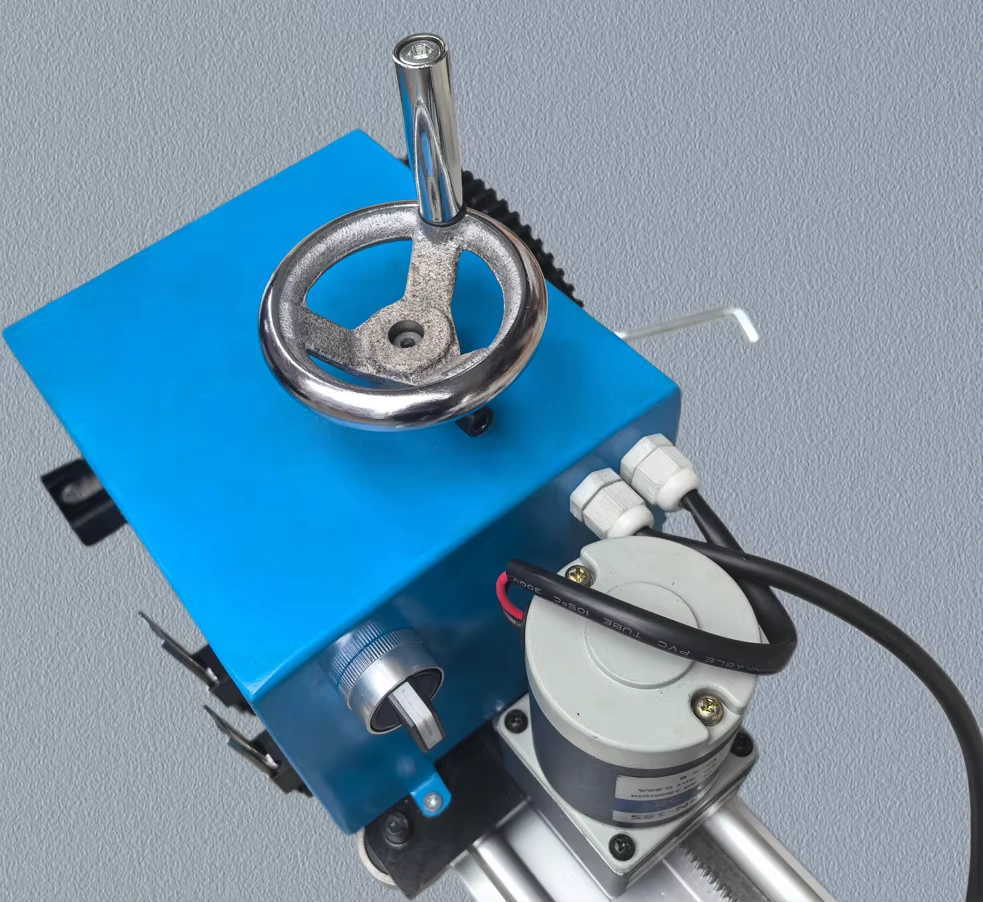

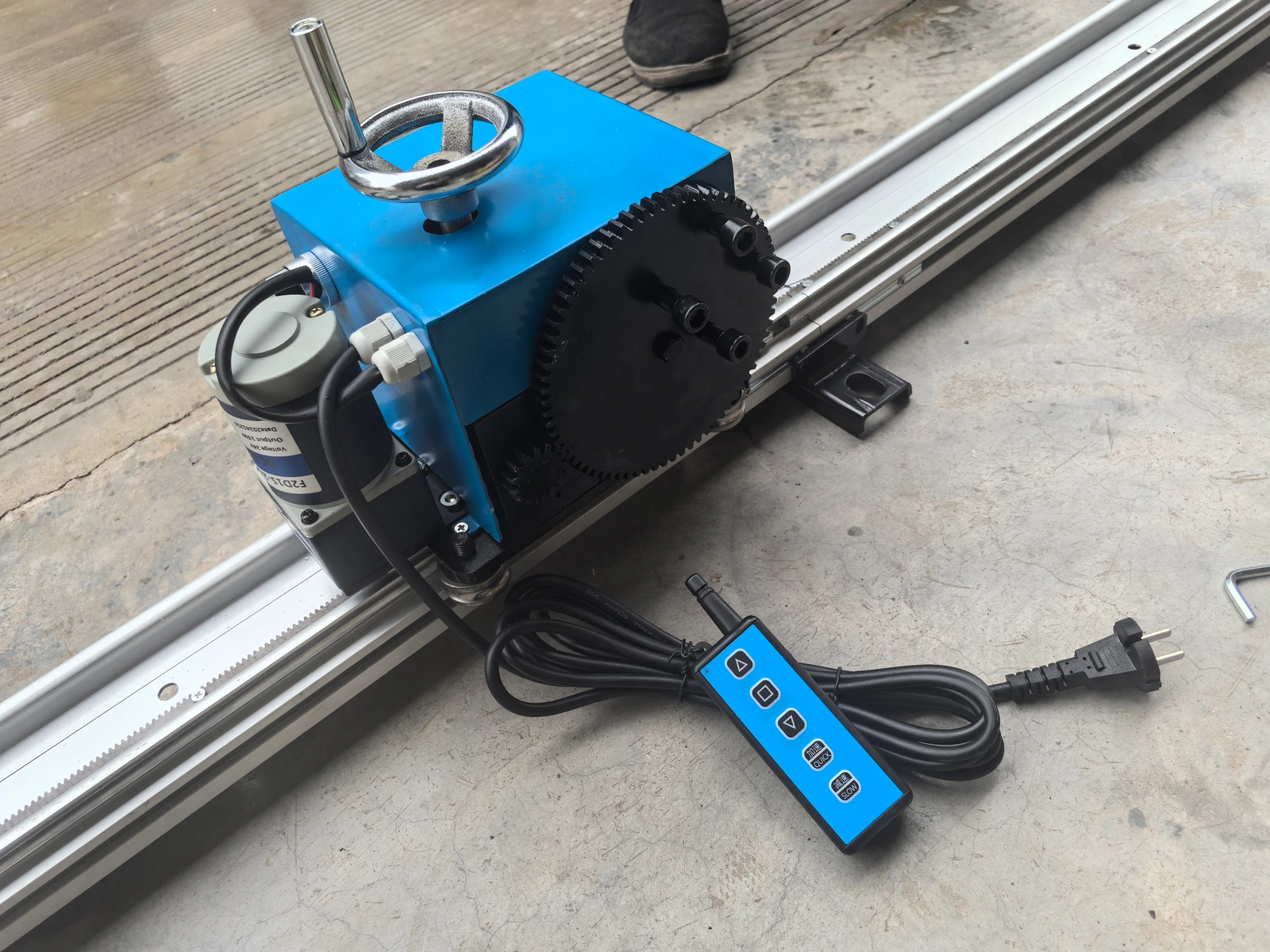

The aluminium guide and powered carriage are shown separately from a saw. Original close-ups reveal the handwheel, motor mounting, connections and the carriage on the rail.
View product →
Source photographs and labelled component panels. Installed saws, workshop machines, colours and packing are examples; the quotation defines the supplied configuration.
Model to be confirmed
1.5 m Automatic Wall Saw Track

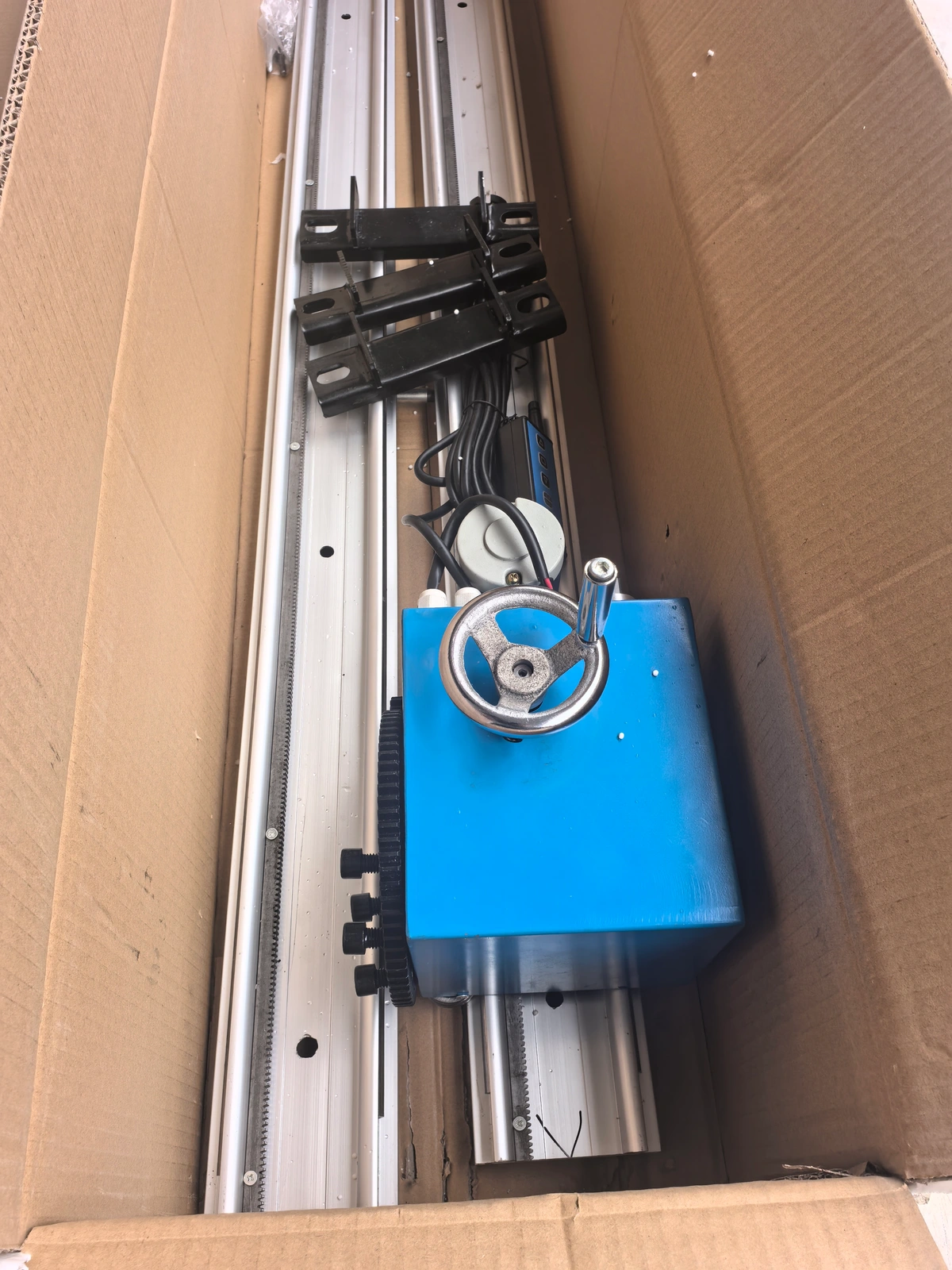

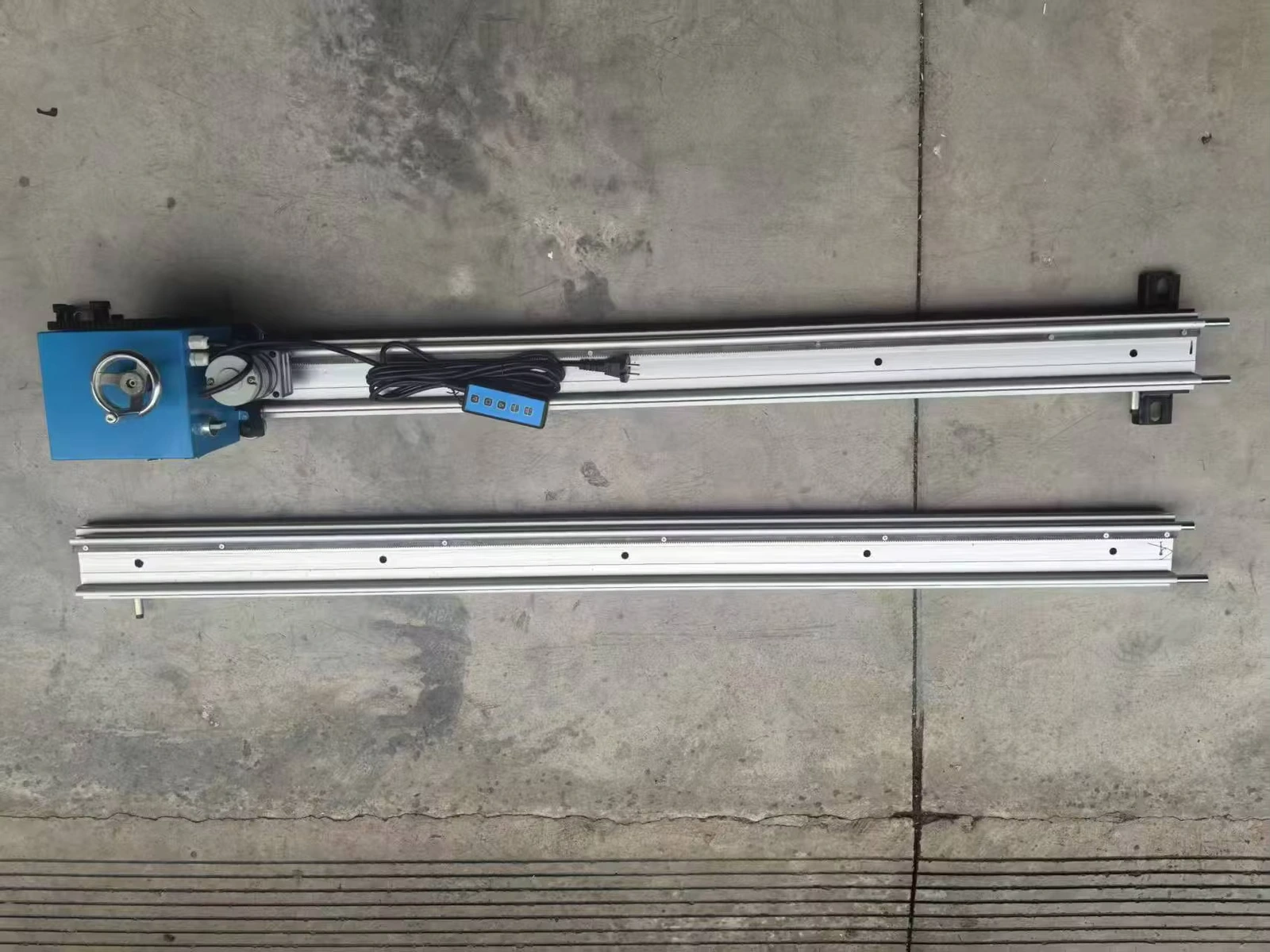

This listing is for the guide track and powered carriage, not a complete cutting saw. The original views show an aluminium rail, blue carriage housing, handwheel, drive motor and controller.
- Product and application
- Choosing this configuration
- Check the saw-to-carriage fit
- Controller and spare-parts scope
Technical Specifications
| Source weight; supply scope to confirm | 25 kg |
|---|---|
| Source dimensions; assembled/packed scope to confirm | 157*30*26cm |
| Track arrangement | Monorail |
| Material field | Aluminum alloy |
| Length field; see configuration notes | 1.5m |
| Cutting-range field | 1.5 m |
| Source application | Tools Spare Parts |
| Parameters to confirm | Confirm missing or conflicting parameters and the itemised delivery contents before ordering. |
Product Description
Product and application
This listing is for the guide track and powered carriage, not a complete cutting saw. The original views show an aluminium rail, blue carriage housing, handwheel, drive motor and controller. It is selected to support and move a compatible saw along a straight line; the saw attachment, anchor arrangement and delivered rail sections should be quoted explicitly.
Choosing this configuration
Length and cutting range are both recorded as 1.5 m; overall dimensions are 157 × 30 × 26 cm and weight 25 kg. The 6900 W and 3000 r/min fields may describe a paired saw rather than the carriage motor, so they are not published as verified track ratings. Request the carriage’s own motor plate and usable travel with the selected saw fitted.
Check the saw-to-carriage fit
Provide the saw model and photographs or drawings of its mounting points. Agree the carriage interface, rail sections, joints, fixing positions and usable stroke. Neither aluminium construction nor a similar-looking handwheel proves that another saw will fit. A complete saw must be itemised if it is required.
Controller and spare-parts scope
Request the carriage motor rating, controller supply and approved mounting instructions. Specify the included controller, cables, brackets and anchors separately. Keep the rail/carriage parts drawing with the saw details so that rollers, gears and mounting pieces can be identified correctly later.
Before ordering
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
Applications
This listing is for the guide track and powered carriage, not a complete cutting saw. The original views show an aluminium rail, blue carriage housing, handwheel, drive motor and controller. It is selected to support and move a compatible saw along a straight line; the saw attachment, anchor arrangement and delivered rail sections should be quoted explicitly.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
Product FAQ
Is a cutting saw included?
This page concerns the guide and carriage. A complete saw must be explicitly itemised if required.
Can it take any wall saw?
No universal interface is established. Send the saw model and mounting drawing for confirmation.
Does saw speed describe carriage feed?
No. Ask for separate carriage motor and feed-rate data; the source’s saw-like speed and power fields need clarification.
Are controller, cables and anchors included?
Request an itemised set list and compatible fixing arrangement. Photographs alone do not establish the complete supply.
Is 1.5 m rail length the usable cutting stroke?
The source also states 1.5 m cutting range, but end stops, carriage length and the fitted saw can affect usable travel. Obtain a drawing for the quoted assembly.
What information is needed to confirm this configuration?
Length and cutting range are both recorded as 1.5 m; overall dimensions are 157 × 30 × 26 cm and weight 25 kg. The 6900 W and 3000 r/min fields may describe a paired saw rather than the carriage motor, so they are not published as verified track ratings. Request the carriage’s own motor plate and usable travel with the selected saw fitted.
