Source photographs and labelled component panels. Installed saws, workshop machines, colours and packing are examples; the quotation defines the supplied configuration.

Model to be confirmed

2.4 m Powered Ring Saw Track

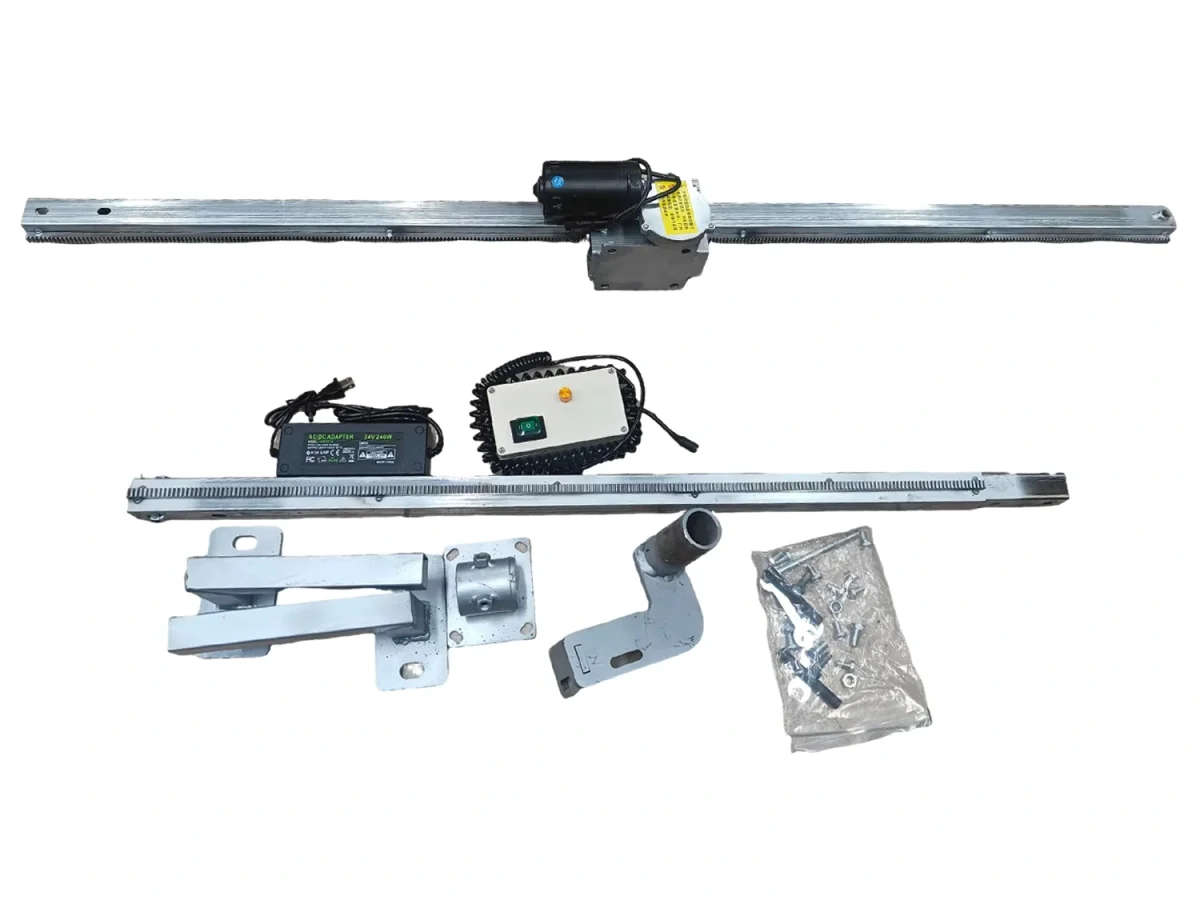

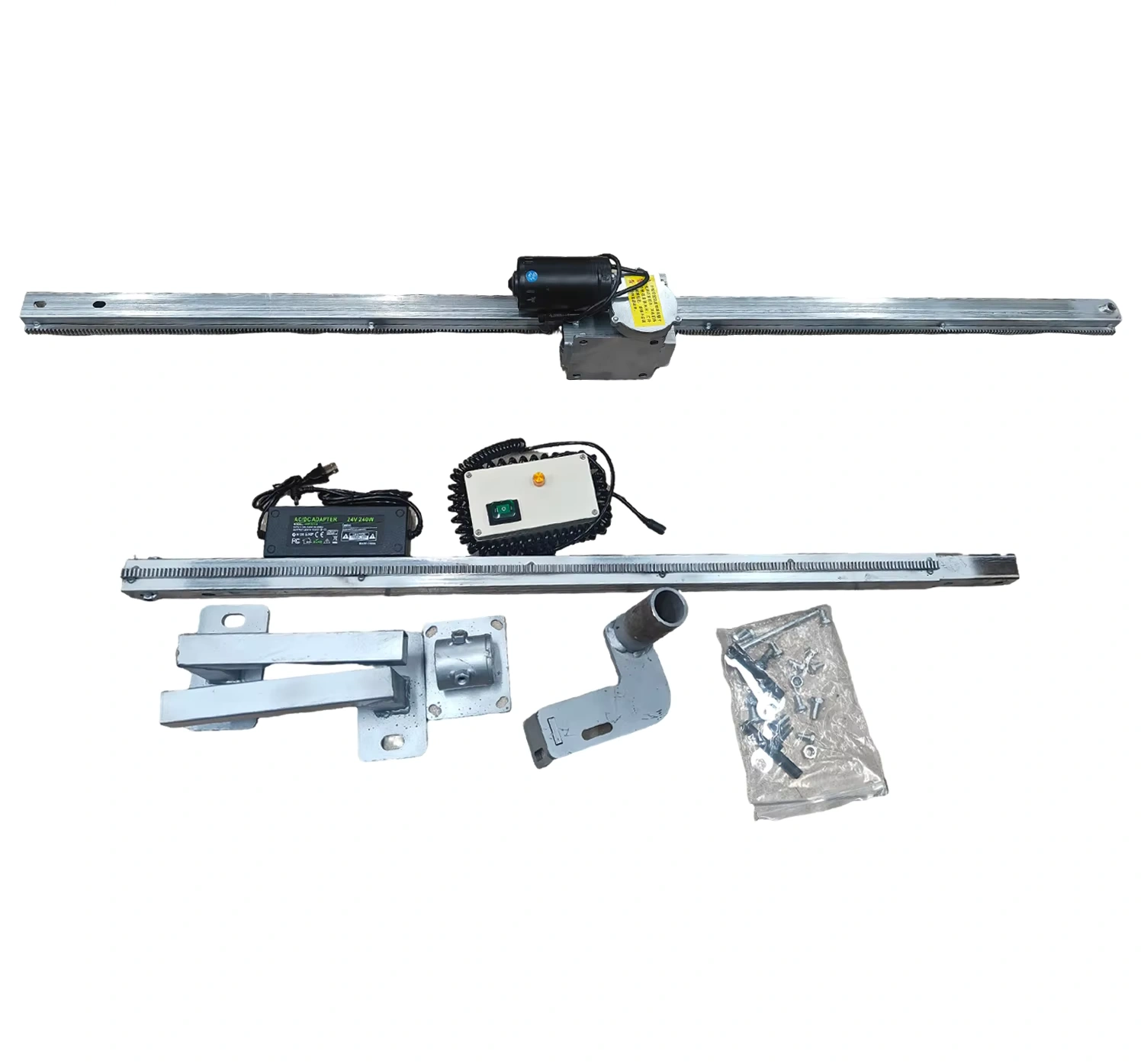

This is the powered double-track guide set used with a compatible ring saw. The original set photograph shows rails, a small drive assembly, controller and mounting parts.

Product and application
Choosing this configuration
Match rail sections and mounting
Powered carriage and delivery list

Get a Quote WhatsApp

Technical Specifications

Speed field; component to confirm	0-30r/min
Supply voltage	220V~240V
Power field	80W
Source weight; supply scope to confirm	20 kg
Source dimensions; assembled/packed scope to confirm	2323135cm
Material field	Galvanized steel
Length field; see configuration notes	2.4m
Source application	Tools Spare Parts
Track arrangement	Double track
Parameters to confirm	Confirm missing or conflicting parameters and the itemised delivery contents before ordering.

Product Description

Product and application

This is the powered double-track guide set used with a compatible ring saw. The original set photograph shows rails, a small drive assembly, controller and mounting parts. A saw fitted to a rail is an installation example; specify whether the quotation covers the guide set alone or a complete matched saw-and-track assembly.

Choosing this configuration

The source gives 2.4 m rail length, galvanized steel, 80 W, 220–240 V and 20 kg. Its 0–30 r/min speed field needs the component identified; it is not a stated carriage feed rate in metres per minute. Dimensions 23 × 23 × 135 cm differ from assembled rail length and should be checked as packing or section dimensions.

Match rail sections and mounting

Send the ring-saw model and carriage mounting dimensions. Agree each rail section, joint, fixing bracket and usable travel. The pictured saw and mounting examples help identify the arrangement but do not prove compatibility with every ring saw or that a cutting machine is included.

Powered carriage and delivery list

Ask for a current drive plate and controller specification, including the supply connection and actual feed adjustment. Request the mounting instructions and parts drawing. Rails, controller, motor, cables and hardware should each be identified in the quote, rather than assumed from a set photograph.

Before ordering

Confirm missing or conflicting parameters and the itemised delivery contents before ordering.

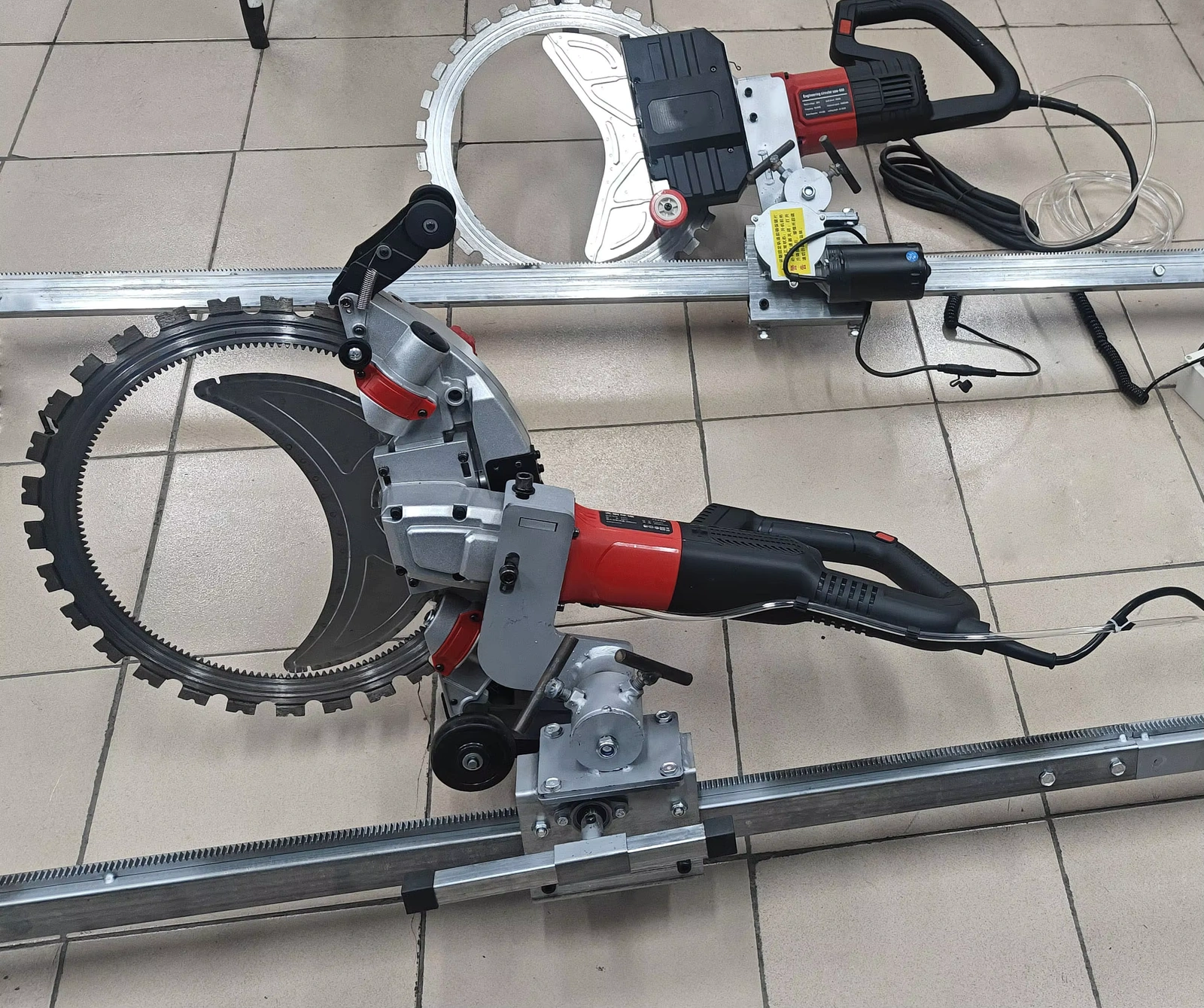

Compatible saw installation examples — saw supply separate

Applications

This is the powered double-track guide set used with a compatible ring saw. The original set photograph shows rails, a small drive assembly, controller and mounting parts. A saw fitted to a rail is an installation example; specify whether the quotation covers the guide set alone or a complete matched saw-and-track assembly.

Packaging & Shipping

Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.

Configuration Options

Confirm missing or conflicting parameters and the itemised delivery contents before ordering.

Product FAQ

Is the ring saw included?

A fitted saw is an installation example. Confirm separately whether the machine is part of the order.

Does r/min specify travel speed?

Not without identifying the shaft and transmission. Request actual linear carriage feed and adjustment range.

Is the rail compatible with my existing saw?

Submit the saw model and mounting dimensions. Rail length alone does not establish a compatible carriage or blade clearance.

What is included in the powered set?

Agree rails, carriage, motor, controller, cables, brackets and fixing parts individually in the quotation.

Does 80 W describe the cutting saw motor?

This is a guide-set listing. Treat the 80 W field as source data for the powered accessory pending plate confirmation, not the ring saw’s cutting power.

What information is needed to confirm this configuration?
