1.5 m Automatic Wall Saw Track
This listing is for the guide track and powered carriage, not a complete cutting saw. The original views show an aluminium rail, blue carriage housing, handwheel, drive motor and controller.
View product →
Source photographs and labelled component panels. Installed saws, workshop machines, colours and packing are examples; the quotation defines the supplied configuration.
Model to be confirmed
Automatic Wall Saw Track — Length to Confirm

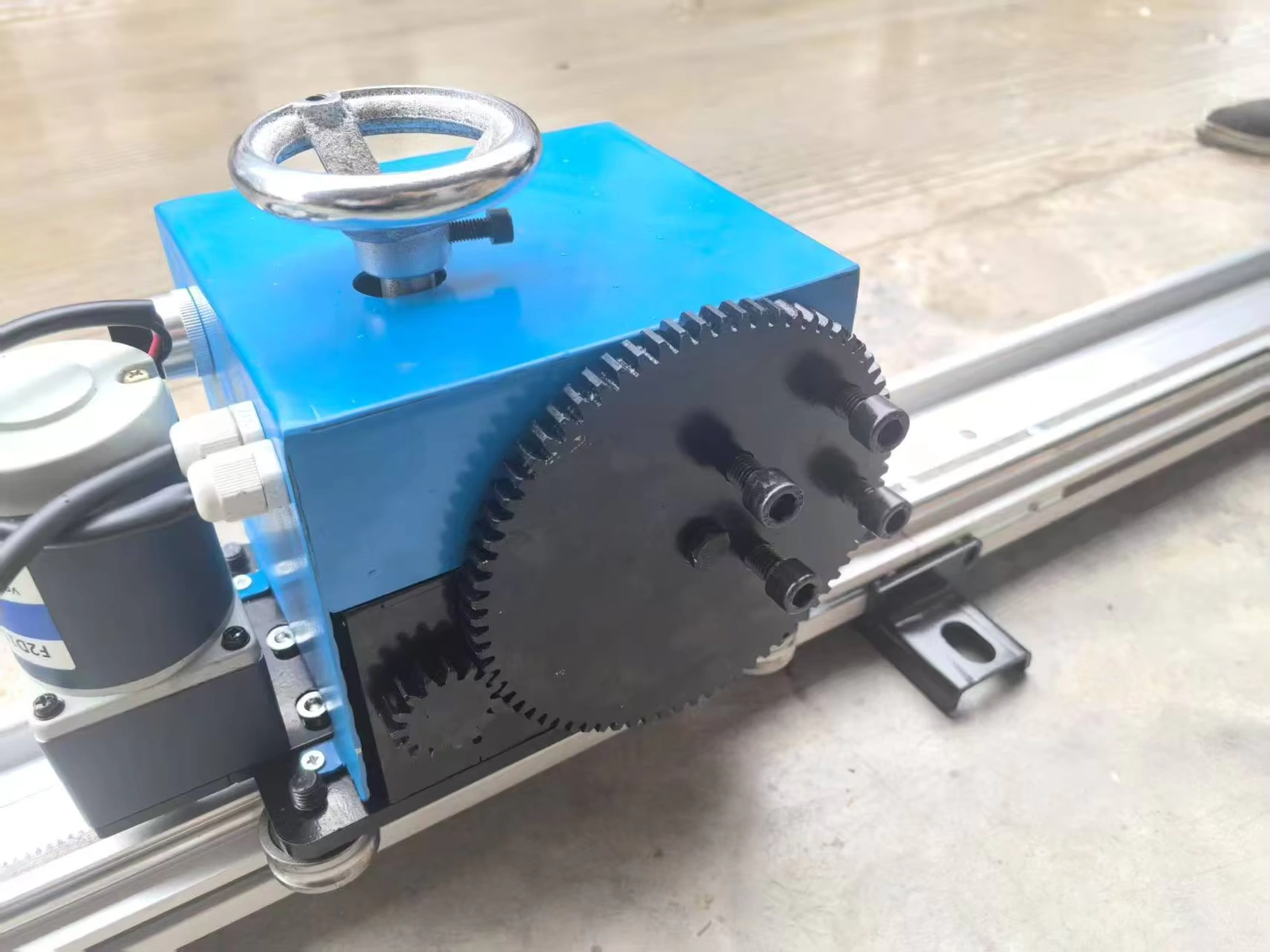

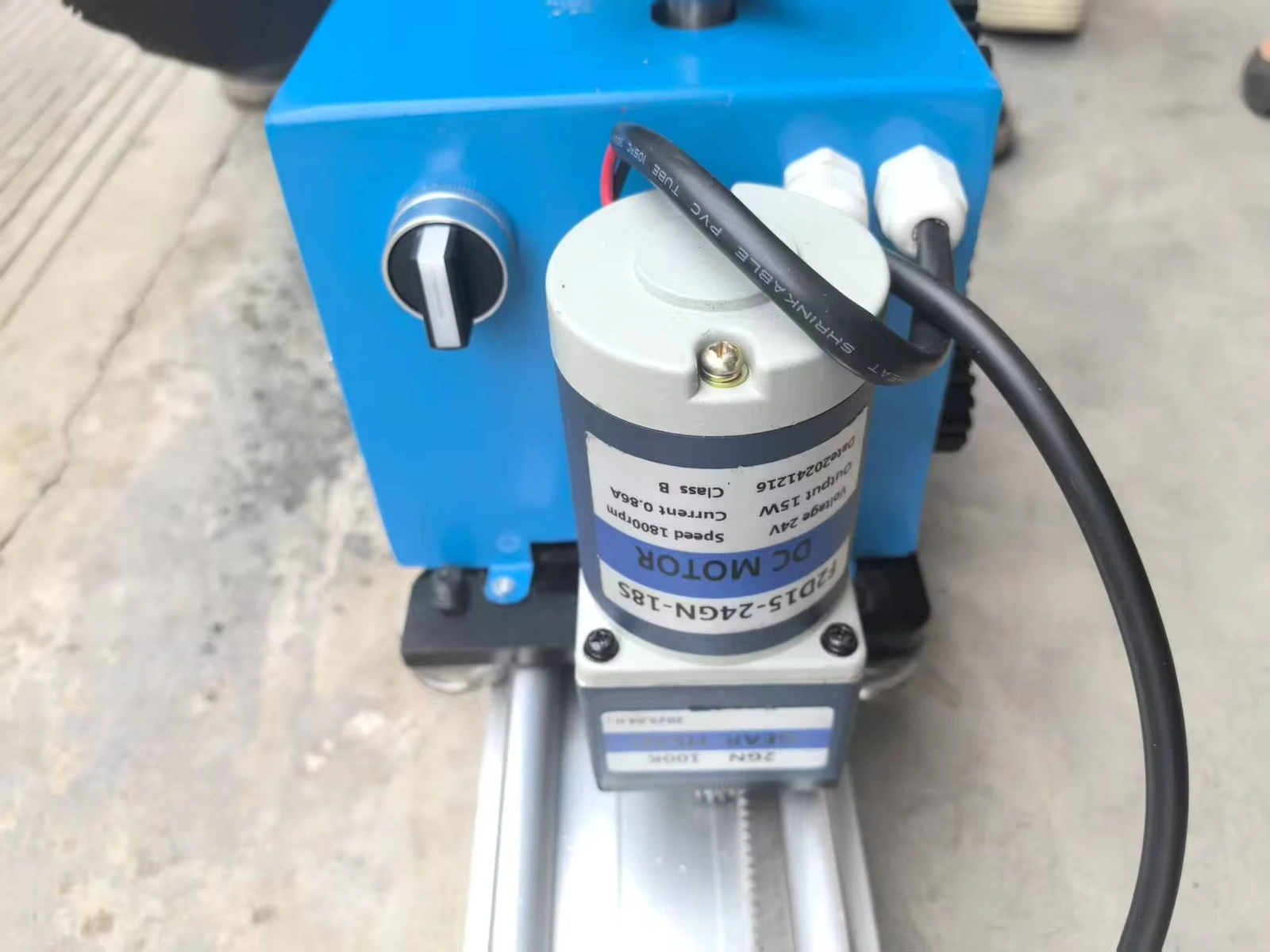

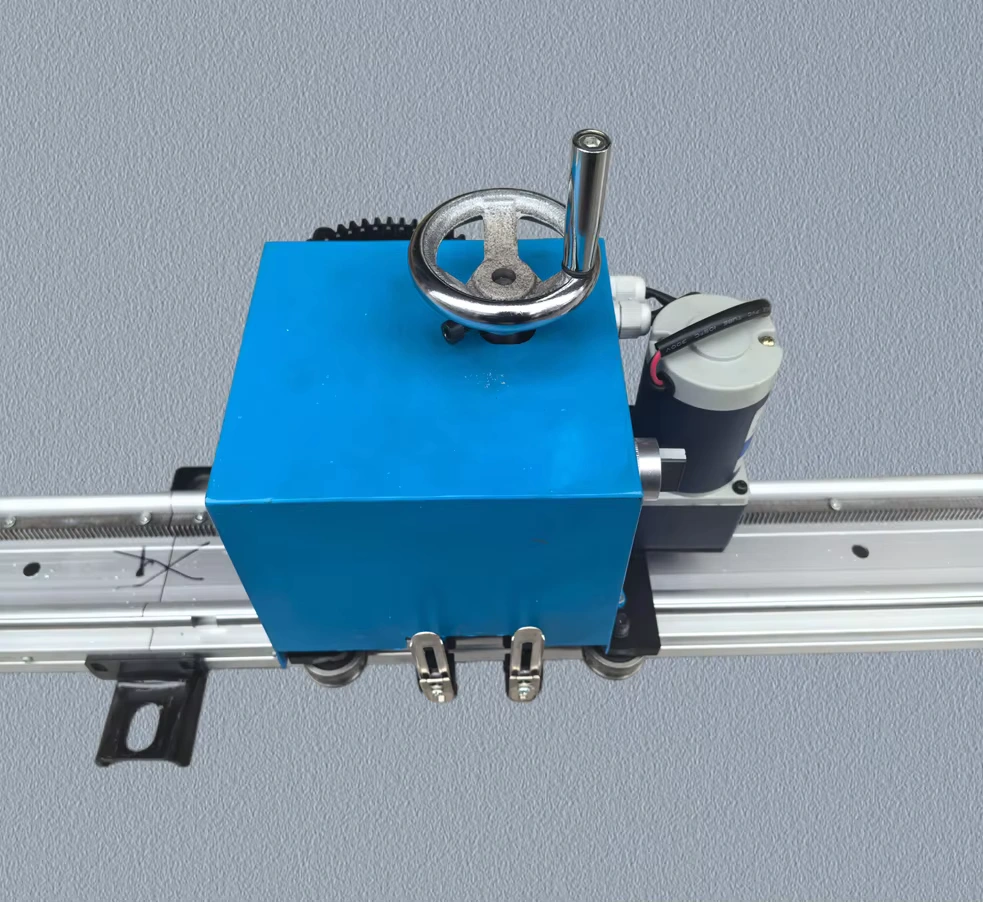

The aluminium guide and powered carriage are shown separately from a saw. Original close-ups reveal the handwheel, motor mounting, connections and the carriage on the rail.
- Product and application
- Choosing this configuration
- Check the saw-to-carriage fit
- Controller and spare-parts scope
Technical Specifications
| Source weight; supply scope to confirm | 25 kg |
|---|---|
| Source dimensions; assembled/packed scope to confirm | 1570*300*260mm |
| Power type | Electric |
| Material field | Aluminium alloy |
| Source application | Tools Spare Parts |
| Track arrangement | Monorail |
| Parameters to confirm | Confirm missing or conflicting parameters and the itemised delivery contents before ordering. |
Product Description
Product and application
The aluminium guide and powered carriage are shown separately from a saw. Original close-ups reveal the handwheel, motor mounting, connections and the carriage on the rail. This is a positioning accessory for a compatible cutting machine; a motorized carriage does not mean that a saw motor or blade is included.
Choosing this configuration
The model-selection text says 1.5 m, but the length attribute says 2.5 m and dimensions are 1570 × 300 × 260 mm. Neither length is silently chosen as the definitive delivered rail. The 6900 W and 3000 r/min fields likewise require clarification of which component they describe. Request a dimensioned rail drawing and a separate carriage specification before ordering.
Check the saw-to-carriage fit
Provide the saw model and photographs or drawings of its mounting points. Agree the carriage interface, rail sections, joints, fixing positions and usable stroke. Neither aluminium construction nor a similar-looking handwheel proves that another saw will fit. A complete saw must be itemised if it is required.
Controller and spare-parts scope
Request the carriage motor rating, controller supply and approved mounting instructions. Specify the included controller, cables, brackets and anchors separately. Keep the rail/carriage parts drawing with the saw details so that rollers, gears and mounting pieces can be identified correctly later.
Before ordering
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
Applications
The aluminium guide and powered carriage are shown separately from a saw. Original close-ups reveal the handwheel, motor mounting, connections and the carriage on the rail. This is a positioning accessory for a compatible cutting machine; a motorized carriage does not mean that a saw motor or blade is included.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Confirm missing or conflicting parameters and the itemised delivery contents before ordering.
Product FAQ
Is a cutting saw included?
This page concerns the guide and carriage. A complete saw must be explicitly itemised if required.
Can it take any wall saw?
No universal interface is established. Send the saw model and mounting drawing for confirmation.
Does saw speed describe carriage feed?
No. Ask for separate carriage motor and feed-rate data; the source’s saw-like speed and power fields need clarification.
Are controller, cables and anchors included?
Request an itemised set list and compatible fixing arrangement. Photographs alone do not establish the complete supply.
Will I receive a 1.5 m or 2.5 m rail?
The listing is inconsistent. Have the supplier state the section lengths, assembled length and usable travel in writing; the old model text alone is insufficient.
What information is needed to confirm this configuration?
The model-selection text says 1.5 m, but the length attribute says 2.5 m and dimensions are 1570 × 300 × 260 mm. Neither length is silently chosen as the definitive delivered rail. The 6900 W and 3000 r/min fields likewise require clarification of which component they describe. Request a dimensioned rail drawing and a separate carriage specification before ordering.
