350L Tilting Drum Concrete Mixer

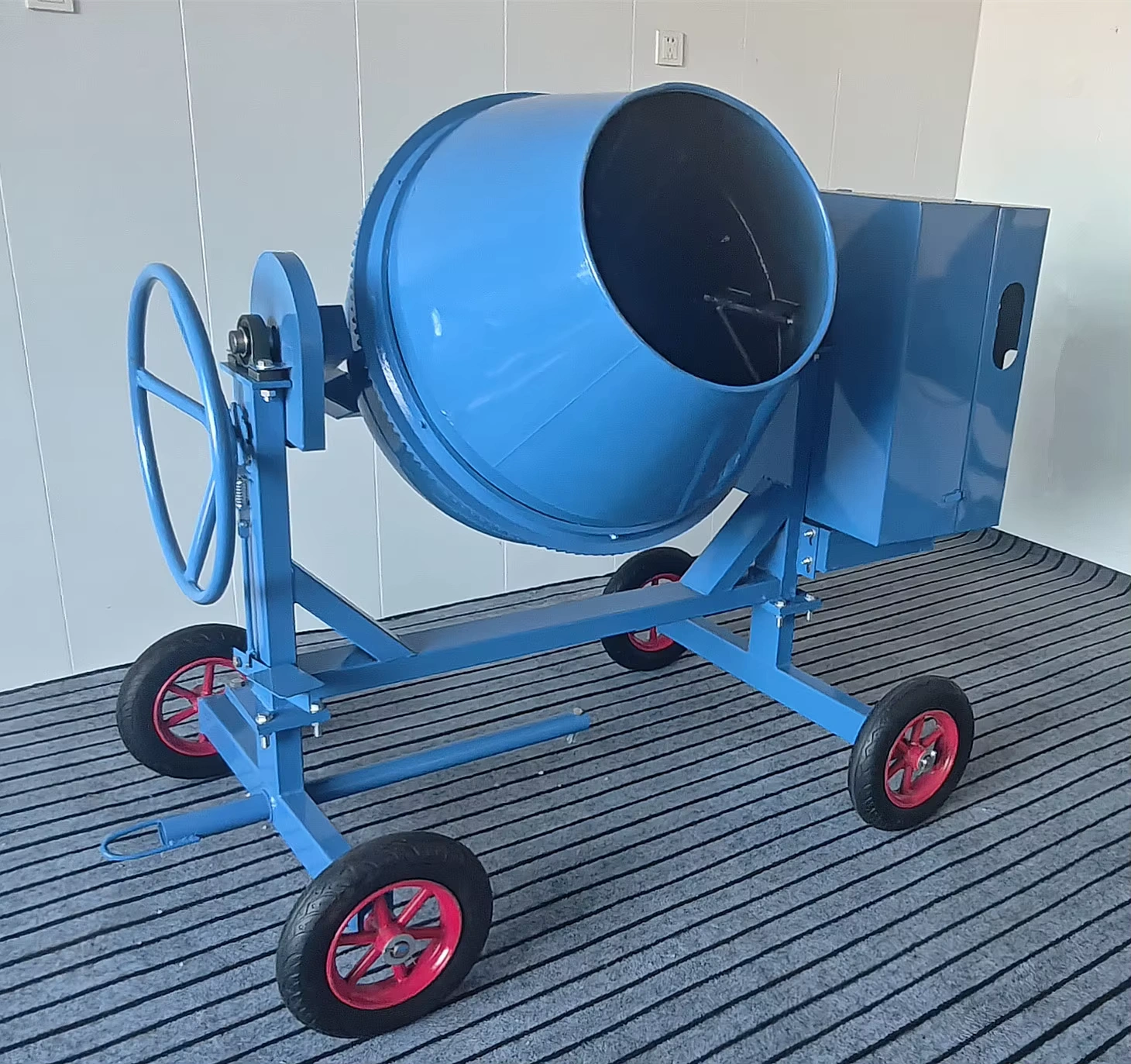

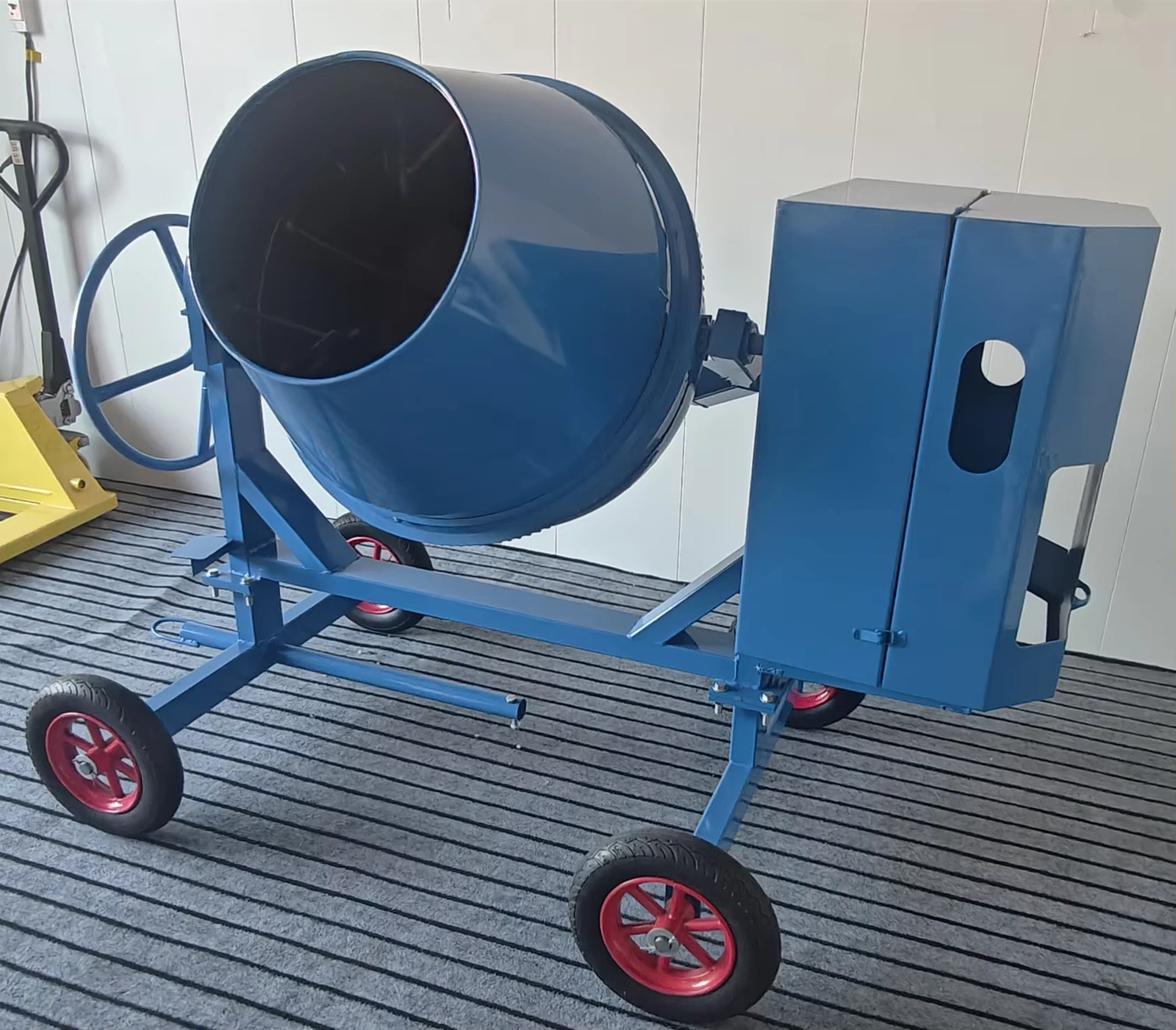

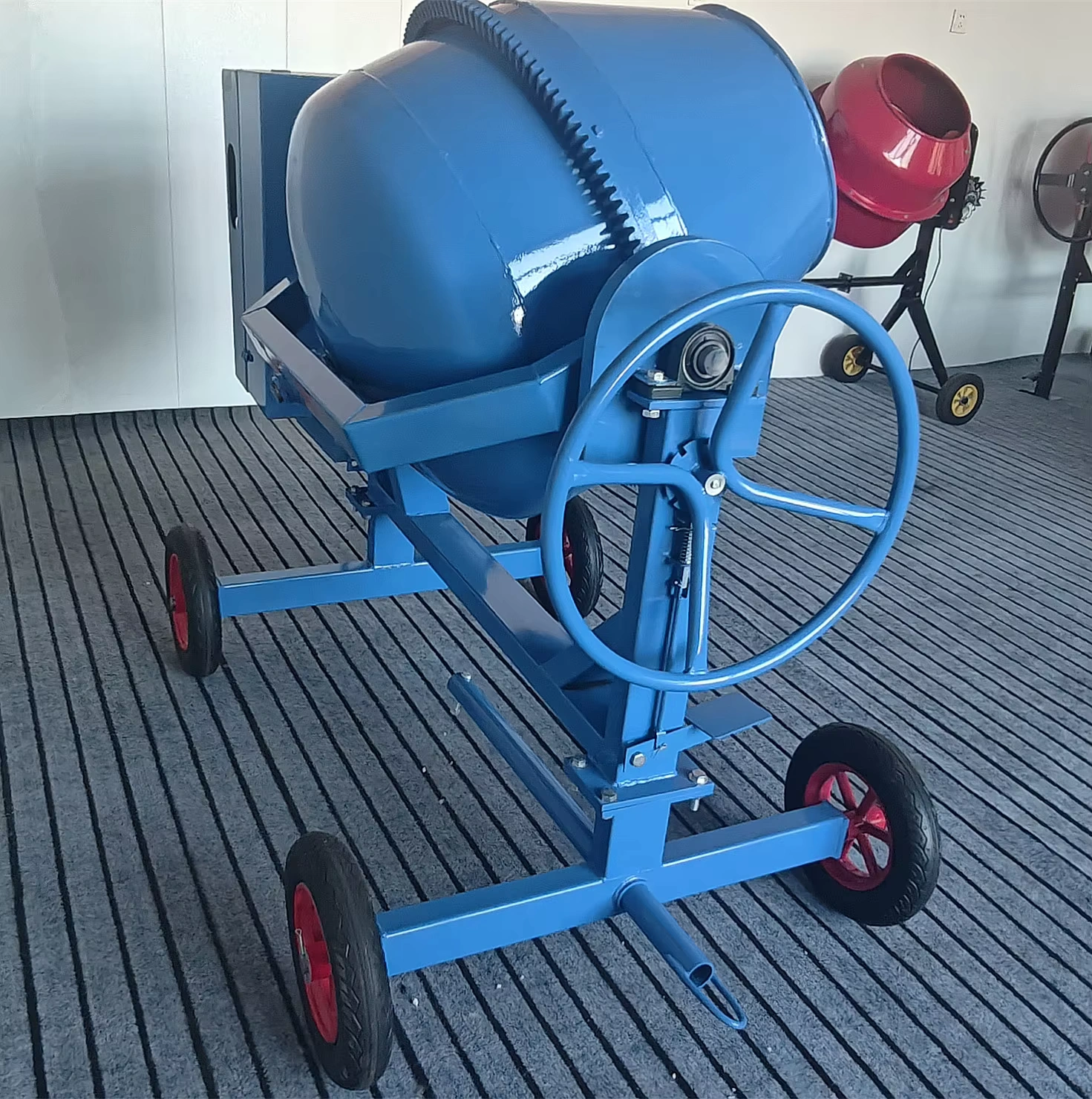

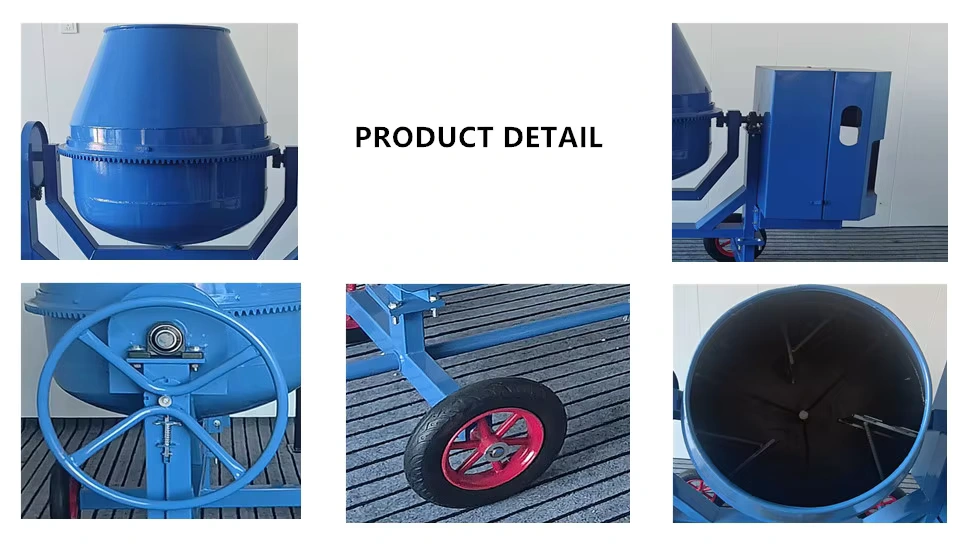

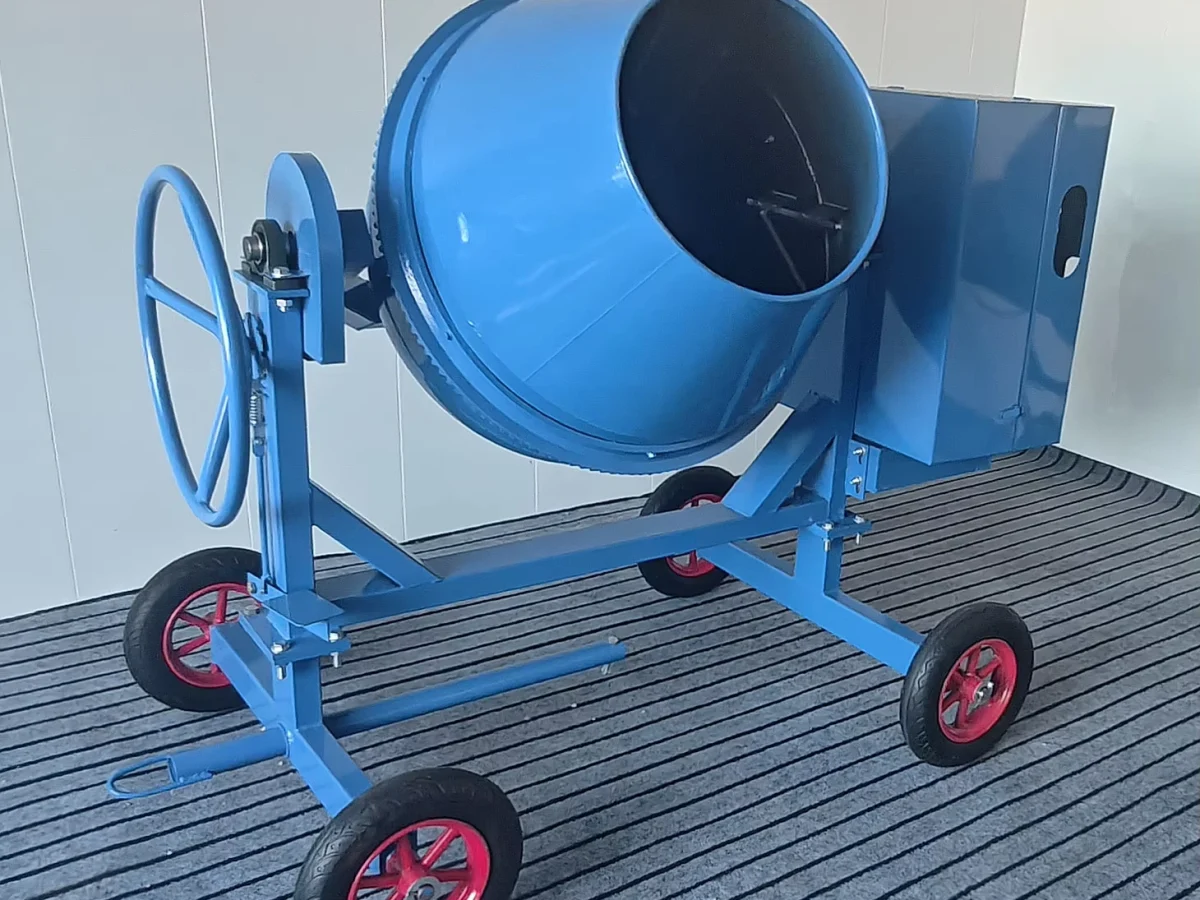

The original photographs show a blue tilting drum, a handwheel and a mobile frame with a covered drive area. The handwheel arrangement is important when planning the discharge height and container clearance.
- What this product is for
- Configuration and specification checks
- Size the mixer around the batch
- Delivery parts and upkeep
Technical Specifications
| Source-listed drive power | 3kw |
|---|---|
| Source-listed charging capacity | 350L |
| Source-listed discharge capacity | 320L |
| Source-listed rotation speed | 30r/min |
| Listed overall dimensions | 1800*1050*1450mm |
| Supplier output claim; site conditions to confirm | 2M³/H |
| Listed machine weight | 200 kg |
| Parameters to confirm | Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly. |
Product Description
What this product is for

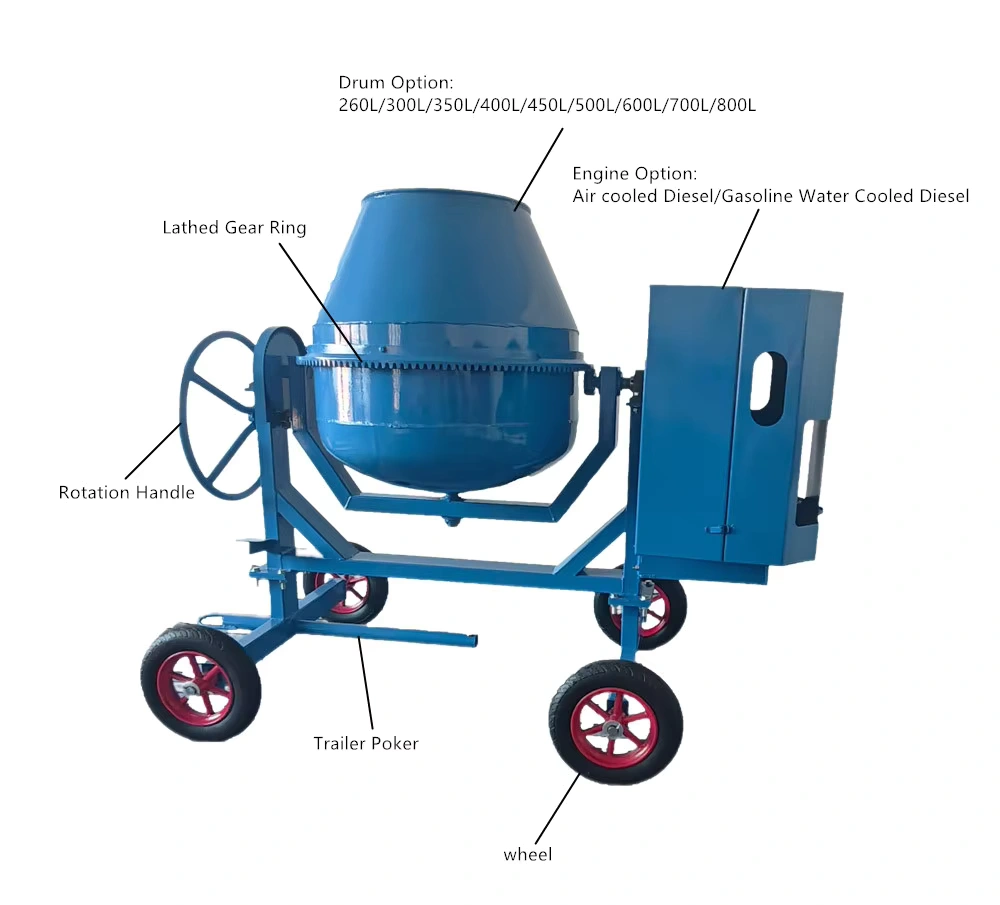

The original photographs show a blue tilting drum, a handwheel and a mobile frame with a covered drive area. The handwheel arrangement is important when planning the discharge height and container clearance. The supplier offers different drive types, so the enclosed drive in a photograph does not confirm a particular engine or electric motor.
Configuration and specification checks
The source lists 350L charging and 320L reclaiming capacity, 30r/min and 200 kg. A 3kw field appears with diesel, gasoline and electric options; it must be confirmed for the selected drive. The listed 60s cycle and 2M³/H are not an unconditional site production rate and do not replace a mixing assessment for the intended recipe.
Size the mixer around the batch
State the material recipe, aggregate size, quantity per batch and intended receiving container. A nominal drum size is not the same as practical mixed output. Check the loading height, tipping clearance, access route and electrical supply; a hand-push frame is for local positioning, not proof of road-towing capability.
Delivery parts and upkeep
Ask whether the drum, frame, wheels, motor and tipping controls arrive assembled or packed separately. Request the correct operating manual and availability of the belt, gears, bearings and other wear parts for this actual version. Confirm the cleaning and inspection schedule with the supplier rather than borrowing a procedure from a visually similar mixer.
Before ordering
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Applications
The original photographs show a blue tilting drum, a handwheel and a mobile frame with a covered drive area. The handwheel arrangement is important when planning the discharge height and container clearance. The supplier offers different drive types, so the enclosed drive in a photograph does not confirm a particular engine or electric motor.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Product FAQ
Is nominal drum capacity the usable batch?
Do not assume so. Confirm useful charging and mixed output for the intended recipe.
Can one motor use every listed voltage?
The source lists options, not a confirmed multi-voltage motor. Specify the site supply and request the supplied motor plate.
Is water supply automatic?
Do not infer that from a general attribute or a photo. Agree the included water equipment and dosing arrangement separately.
What is required for delivery and maintenance?
Confirm assembly state, package dimensions, motor version, tipping mechanism and the matching wear-parts list and manual.
What needs confirmation in this particular listing?
The source lists 350L charging and 320L reclaiming capacity, 30r/min and 200 kg. A 3kw field appears with diesel, gasoline and electric options; it must be confirmed for the selected drive. The listed 60s cycle and 2M³/H are not an unconditional site production rate and do not replace a mixing assessment for the intended recipe.
What should I send to select this product?
State the material recipe, aggregate size, quantity per batch and intended receiving container. A nominal drum size is not the same as practical mixed output. Check the loading height, tipping clearance, access route and electrical supply; a hand-push frame is for local positioning, not proof of road-towing capability.
