Model to be confirmed
200L Electric Concrete Mixer — Listed 180L Discharge

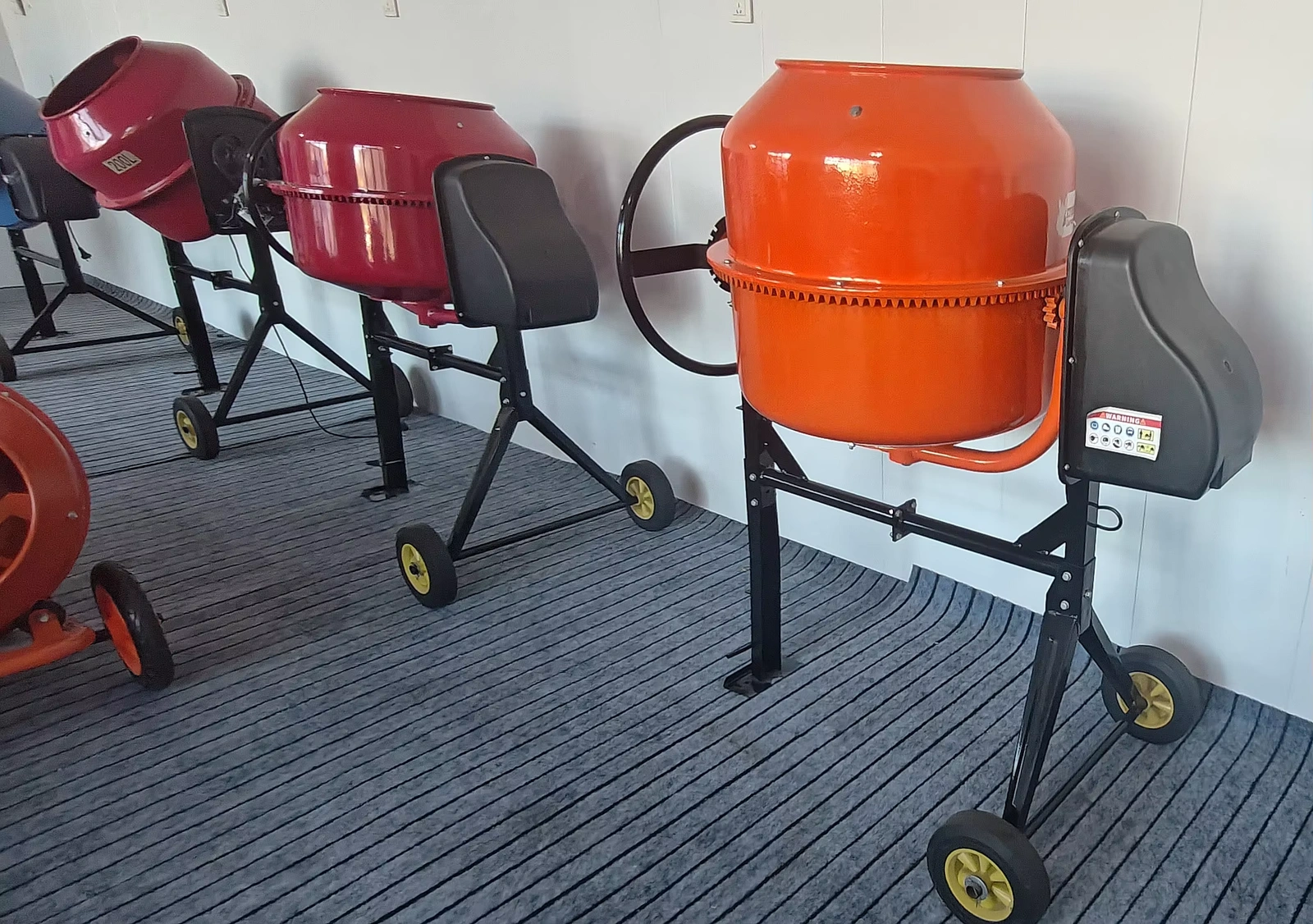

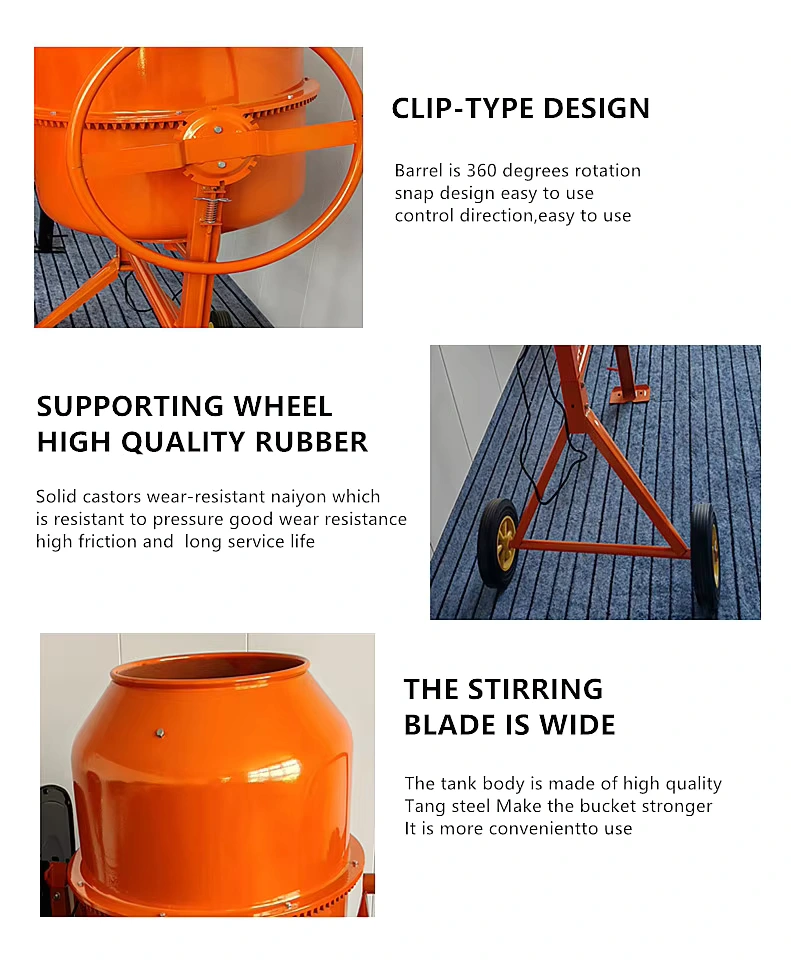

This listing covers a portable electric drum mixer with handwheel tipping. Original workshop photographs and detail panels show the drum, frame and moving assembly.
- What this product is for
- Configuration and specification checks
- Size the mixer around the batch
- Delivery parts and upkeep
Technical Specifications
| Source-listed drive power | 1000W |
|---|---|
| Source-listed mixing power | 1000W |
| Source-listed charging capacity | 200L |
| Source-listed discharge capacity | 180L |
| Source-listed rotation speed | 28rpm |
| Listed overall dimensions | 1160*730*1210mm |
| Supplier output claim; site conditions to confirm | 2M³/H |
| Listed machine weight | 60 kg |
| Parameters to confirm | Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly. |
Product Description
What this product is for
This listing covers a portable electric drum mixer with handwheel tipping. Original workshop photographs and detail panels show the drum, frame and moving assembly. The supplier title mentions several drum capacities, but the attributes describe a selected 200L charging configuration rather than all sizes supplied together.
Configuration and specification checks

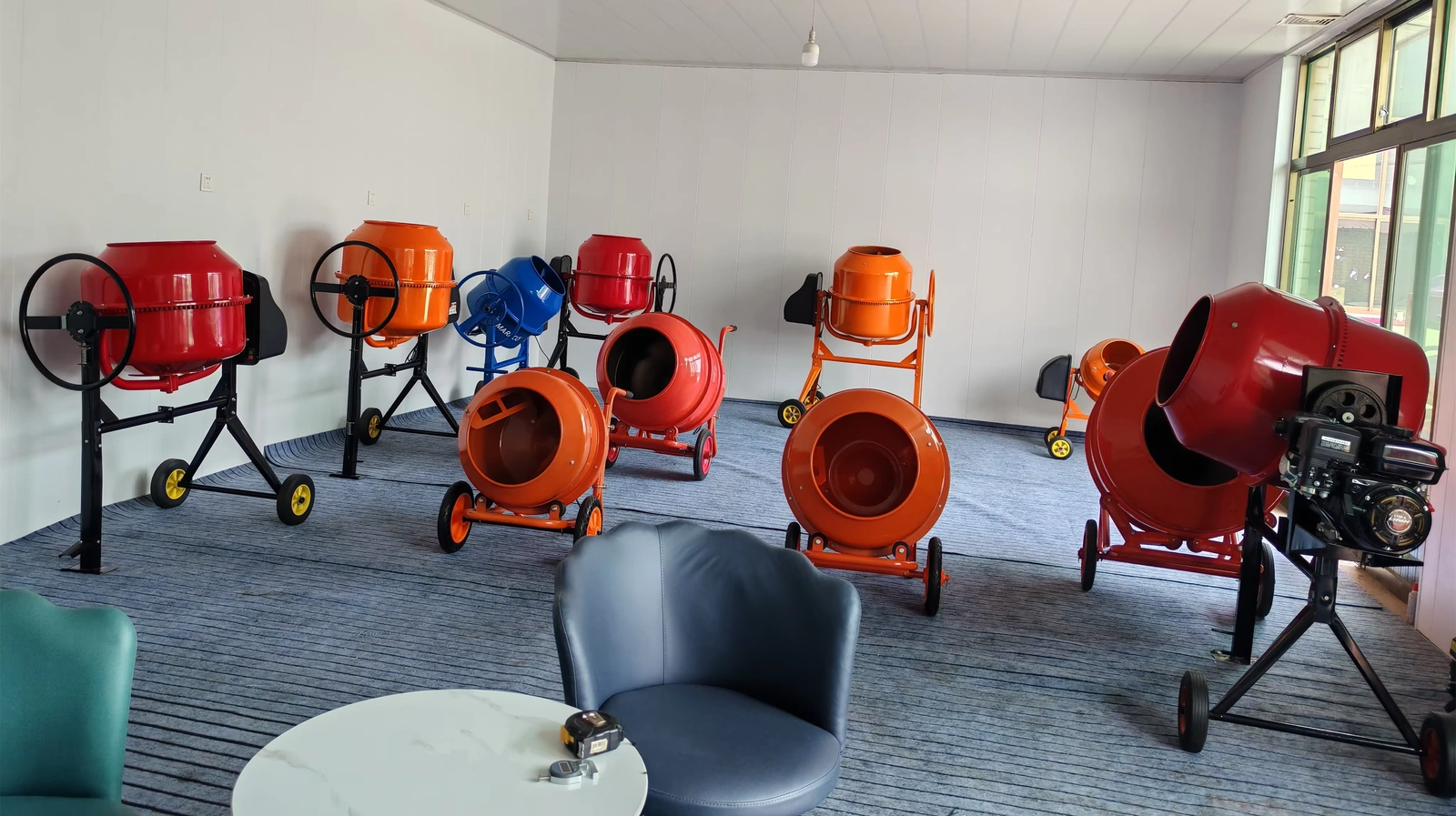

The source lists 180L reclaiming capacity, 1000W, 28rpm and 60 kg. The Power type field repeats its own label and does not establish supply voltage. Request the electrical plate, usable batch size and exact assembly. A pictured lineup shows other machines and must not be read as multiple mixers included in this price.
Size the mixer around the batch
State the material recipe, aggregate size, quantity per batch and intended receiving container. A nominal drum size is not the same as practical mixed output. Check the loading height, tipping clearance, access route and electrical supply; a hand-push frame is for local positioning, not proof of road-towing capability.
Delivery parts and upkeep
Ask whether the drum, frame, wheels, motor and tipping controls arrive assembled or packed separately. Request the correct operating manual and availability of the belt, gears, bearings and other wear parts for this actual version. Confirm the cleaning and inspection schedule with the supplier rather than borrowing a procedure from a visually similar mixer.
Before ordering
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Applications
This listing covers a portable electric drum mixer with handwheel tipping. Original workshop photographs and detail panels show the drum, frame and moving assembly. The supplier title mentions several drum capacities, but the attributes describe a selected 200L charging configuration rather than all sizes supplied together.
Packaging & Shipping
Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.
Configuration Options
Send an enquiry to confirm missing parameters, model identity and the exact supplied assembly.
Product FAQ
Is nominal drum capacity the usable batch?
Do not assume so. Confirm useful charging and mixed output for the intended recipe.
Can one motor use every listed voltage?
The source lists options, not a confirmed multi-voltage motor. Specify the site supply and request the supplied motor plate.
Is water supply automatic?
Do not infer that from a general attribute or a photo. Agree the included water equipment and dosing arrangement separately.
What is required for delivery and maintenance?
Confirm assembly state, package dimensions, motor version, tipping mechanism and the matching wear-parts list and manual.
What needs confirmation in this particular listing?
The source lists 180L reclaiming capacity, 1000W, 28rpm and 60 kg. The Power type field repeats its own label and does not establish supply voltage. Request the electrical plate, usable batch size and exact assembly. A pictured lineup shows other machines and must not be read as multiple mixers included in this price.
What should I send to select this product?
State the material recipe, aggregate size, quantity per batch and intended receiving container. A nominal drum size is not the same as practical mixed output. Check the loading height, tipping clearance, access route and electrical supply; a hand-push frame is for local positioning, not proof of road-towing capability.
Send an Inquiry for This Product
