Manual Double-Rail Wall Saw Track

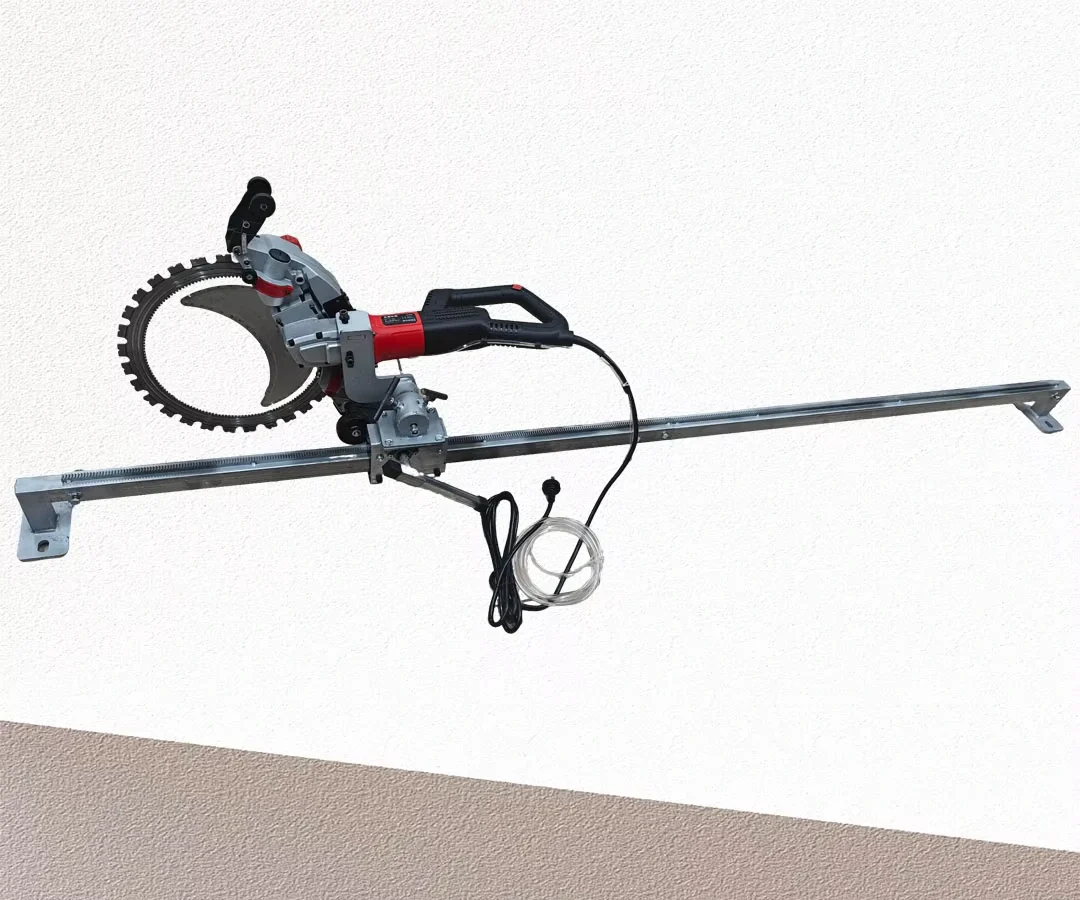

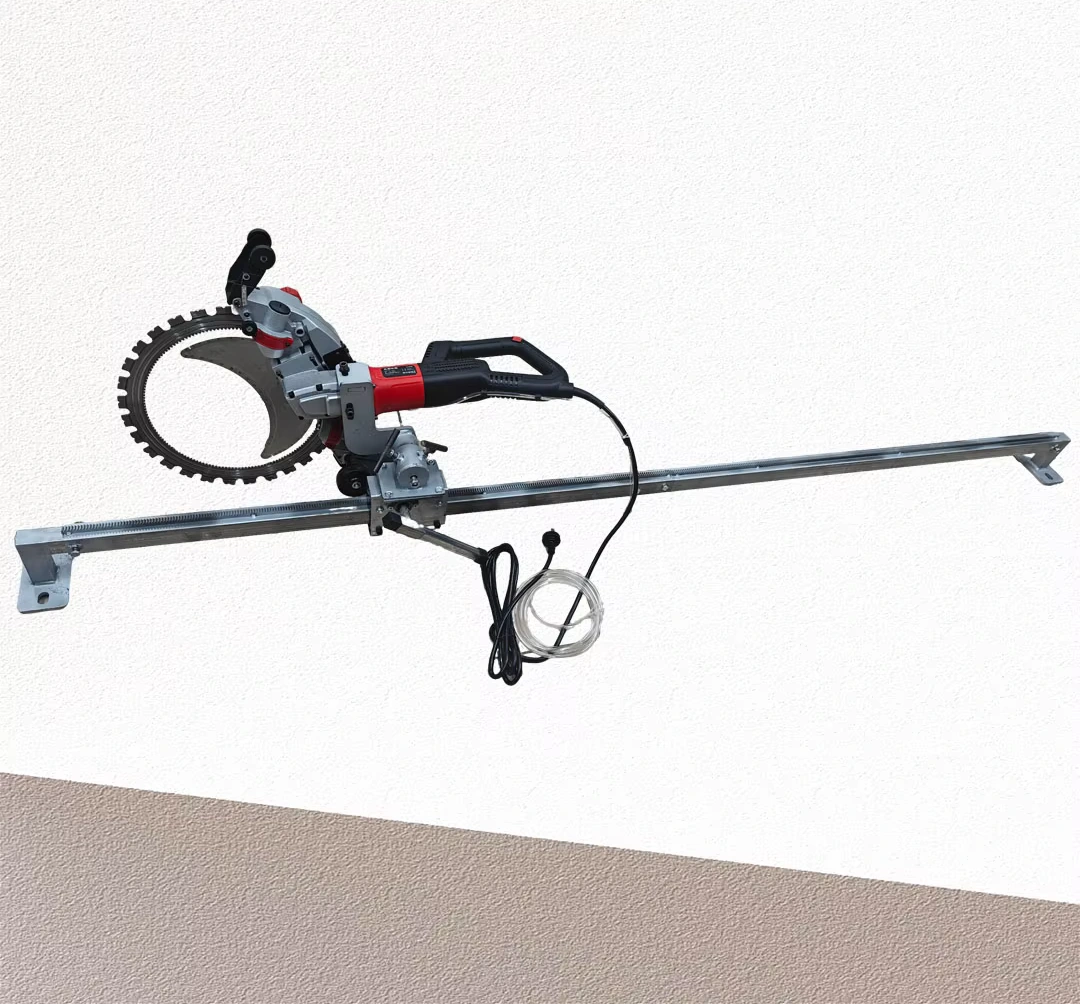

The guide is used to support a compatible wall saw and keep its carriage on a straight path. The original fitted view and hardware panel show the rail arrangement, clamp hardware and saw mounting area.

Product and application
Choosing this configuration
Match the guide to the saw
Hardware, packing and service

Get a Quote WhatsApp

Technical Specifications

Source weight; supply scope to confirm	18 kg
Source dimensions; assembled/packed scope to confirm	2323135cm
Material field	Galvanized steel
Length field; see configuration notes	2.4m
Source application	Tools Spare Parts
Track arrangement	Double track
Parameters to confirm	Confirm missing or conflicting parameters and the itemised delivery contents before ordering.

Product Description

Product and application

The guide is used to support a compatible wall saw and keep its carriage on a straight path. The original fitted view and hardware panel show the rail arrangement, clamp hardware and saw mounting area. The multi-model comparison from the supplier is omitted from the main image so that the accessory is not mistaken for several complete saws.

Choosing this configuration

This source records galvanized steel, double track, 2.4 m length and 18 kg. The related manual-track listing records 20 kg; those records remain separate. Overall dimensions 23 × 23 × 135 cm need to be identified as packed sections or another measurement. Confirm the exact mounting kit, section lengths and saw compatibility.

Match the guide to the saw

Provide the saw model, carriage interface and required cut length. Agree the rail profile, section joints and fixing brackets before ordering. Manual feed describes the guide accessory, not the power source of the separate saw. A similar installation photograph does not establish an interchangeable mounting system.

Hardware, packing and service

Request the rail-section lengths, packed dimensions and an itemised list of carriage and fixing parts. Keep the approved mounting drawing and replacement roller/clamp references. Confirm separately whether a blade or complete saw is needed; the fitted photographs are not a delivery checklist.

Before ordering

Confirm missing or conflicting parameters and the itemised delivery contents before ordering.

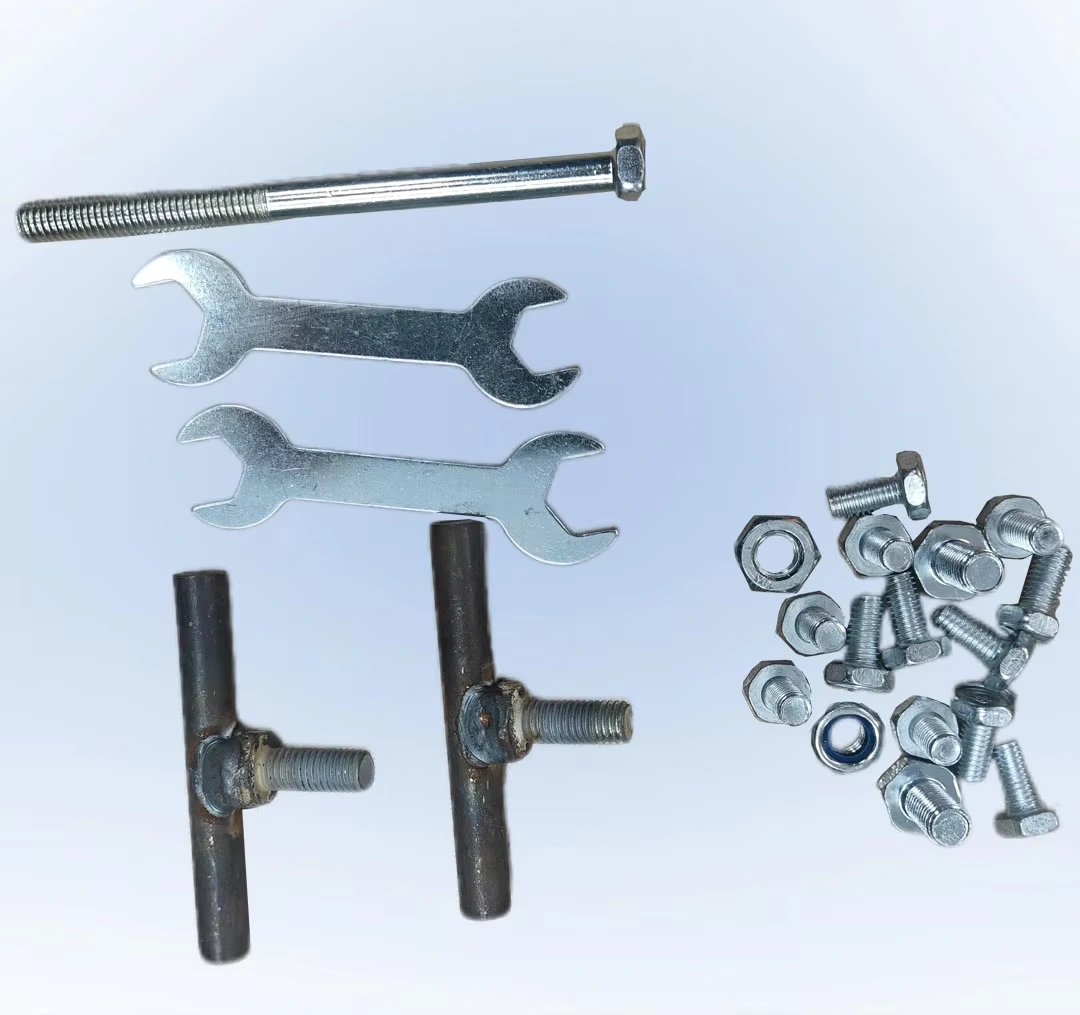

Mounting hardware examples

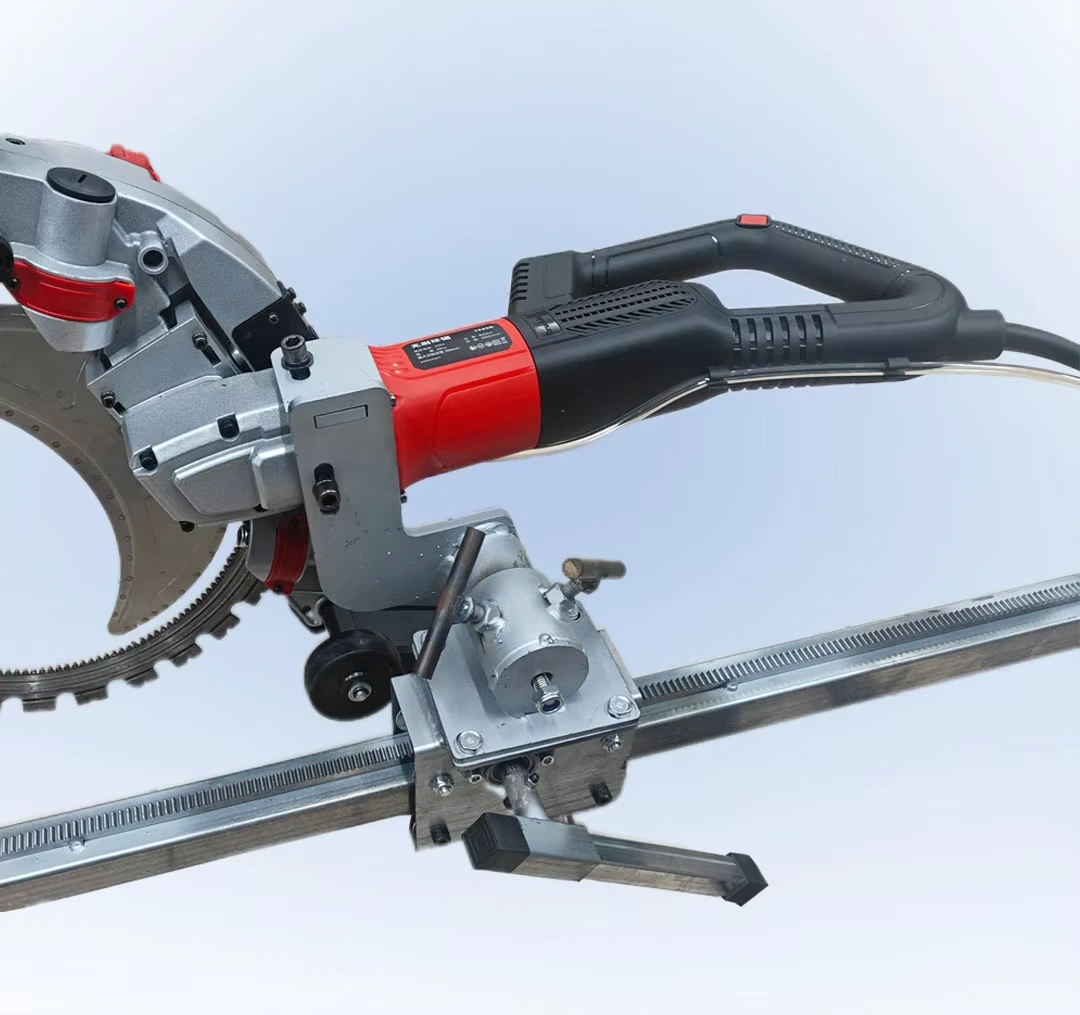

Carriage and saw mounting connection

Applications

The guide is used to support a compatible wall saw and keep its carriage on a straight path. The original fitted view and hardware panel show the rail arrangement, clamp hardware and saw mounting area. The multi-model comparison from the supplier is omitted from the main image so that the accessory is not mistaken for several complete saws.

Packaging & Shipping

Confirm supplied accessories, packing weight and dimensions, transit protection and delivery terms.

Configuration Options

Confirm missing or conflicting parameters and the itemised delivery contents before ordering.

Product FAQ

Does zero power mean a powerless cutting machine?

No. It describes the unpowered guide accessory; the separate saw has its own drive.

Can any saw be mounted?

Compatibility depends on the carriage and mounting interface. Provide the saw model and fixing dimensions.

Are fixing parts included?

Have each bracket, clamp, anchor and joint identified in the delivery list. A hardware panel does not guarantee the same quantity in every order.

Is a blade or saw supplied with the track?

Only when the quote explicitly lists them. Installation photos show the accessory in use, not a complete delivery commitment.

Is this the same 20 kg guide set?

The source for this record says 18 kg. Confirm included hardware and weighing conditions for this order; similar installation pictures do not prove the sets are identical.

What information is needed to confirm this configuration?
